G1-I16
HOPETECH

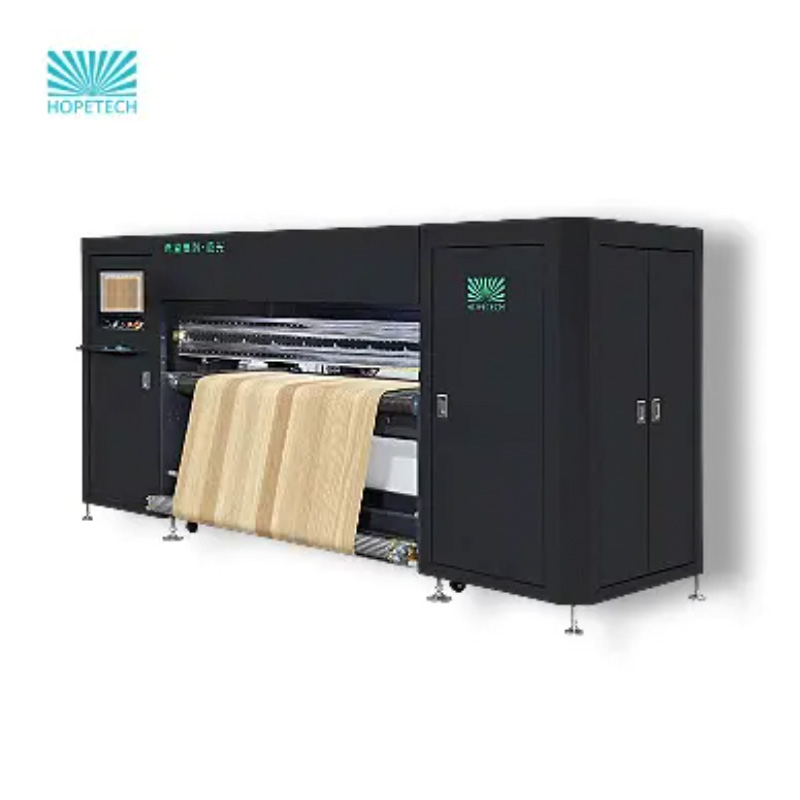

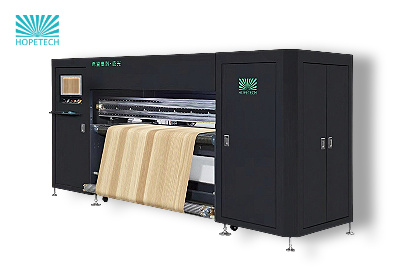

G1-I16 Wood Grain Paper Machine Product Advantages and Features
1. High-Specification Printheads Balancing Precision and Efficiency
Equipped with Epson I3200 16-head/4-color printheads supporting dual high-definition and high-speed printing modes. High-definition mode achieves output up to 625㎡/hour, while high-speed mode reaches up to 783㎡/hour. Ensures intricate wood grain reproduction while significantly boosting production efficiency to meet bulk order delivery demands.
2. Wide-Format Output for Industrial Production
Features a maximum print width of 1900mm and supports roll media up to 1000mm diameter. Large-format output minimizes splicing processes, while large-diameter rolls reduce material change frequency, enabling continuous production and providing robust support for large-scale manufacturing.
3. Multi-Ink Compatibility for Diverse Applications
Supports thermal sublimation, water-based pigment, reactive, and other ink types, reliably compatible with wood grain paper, transfer paper, wallpaper, film, and various decorative substrates. Flexibly meets personalized printing demands across building materials, home furnishings, and other industries, expanding business applications.
4. Industrial-Grade Stability for Long-Term Operation
Features a three-phase 380VAC, 18kW power supply system. Main unit dimensions: 2550×3730×1800mm. Total weight: 2200kg. The equipment boasts high durability and interference resistance, ensuring stable long-term operation in industrial environments while minimizing downtime risks.
Product Specifications:
G1 | |||||
Machine Model | G1-K8 | G1-M8 | |||
Max Printing Width | 1900mm | ||||
Printhead Brand/Type | Kyocera EX600RC | Epson S3200 | |||
Printhead QTY/ Color | 8 Heads/4 Colors(2*4) | 8 Heads/4 Colors(2*4) | |||
Printing Mode | High Definition Mode | High Speed Mode | High Definition Mode | High Speed Mode | |
Production(m2/h) | 1 Pass | 710 | 800 | 520 | 805 |
2 Pass | 390 | 445 | 280 | 454 | |
4 Pass | 205 | 235 | 140 | 225 | |
Ink Type | Sublimation/AQ Pigment/Reactive | ||||
Applicable Medium | Transfer Paper/Decoration Paper/Film/Wallpaper | ||||
Max Roll Diameter | 1000mm | ||||
Power Supply | 3Phase 380VAC,18kW | ||||
Printer Dimension(LxWxH) | 2550×3730×1800mm | ||||
Printer Weight | 2200kg | ||||
G1 | |||||
Machine Model | G1-M12 | G1-I16 | |||
Max Printing Width | 1900mm | ||||
Printhead Brand/Type | Epson S3200 | Epson I3200 | |||
Printhead QTY/ Color | 12 Heads/6 Colors(2*6) | 16 Heads/4 Colors(2*8) | |||
Printing Mode | High Definition Mode | High Speed Mode | High Definition Mode | High Speed Mode | |
Production(m2/h) | 1 Pass | 506 | 796 | 625 | 783 |
2 Pass | 271 | 440 | 342 | 434 | |
4 Pass | 136 | 220 | / | / | |
Ink Type | Sublimation/AQ Pigment/Reactive | ||||
Applicable Medium | Transfer Paper/Decoration Paper/Film/Wallpaper | ||||
Max Roll Diameter | 1000mm | ||||
Power Supply | 3Phase 380VAC,18kW | ||||
Printer Dimension(LxWxH) | 2550×3730×1800mm | ||||
Printer Weight | 2200kg | ||||
Application Scenarios:

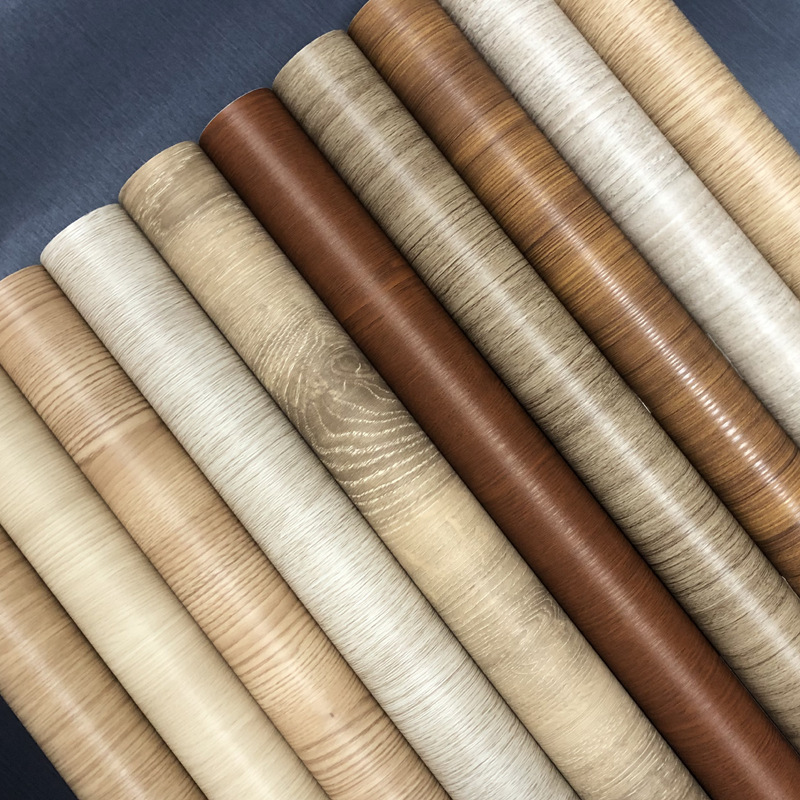

G1-I16 Wood Grain Paper Machine Core Application Scenarios
1. Home Furnishing Panel Laminating Production
Meets wood grain paper laminating needs for custom wardrobes, cabinets, and other furniture panels. The 1900mm width accommodates large-format panels, while high-capacity mode fulfills bulk orders. Precisely reproduces natural wood grain textures, enhancing panel value-added and market competitiveness.
2. Commercial Space Decoration Projects
Supplies wallpaper and decorative films for hotels, office buildings, and similar projects. High-speed printing ensures timely project delivery, while multi-substrate compatibility enables diverse finishes like matte and glossy textures, making it ideal for large-scale commercial installations.
3. Outdoor Building Material Transfer Processing
Supports wood grain transfer production on aluminum composite panels and metal decorative panels. Sublimation ink and transfer paper achieve high compatibility, while industrial-grade stability enables 24/7 continuous production. Wide-format output minimizes panel splicing, enhancing the aesthetics of outdoor building materials.
4. Personalized Soft Furnishing Customization Services
Meets the customized wood-grain curtain and decorative artwork demands of vacation rentals and high-end residences. High-definition printing mode reproduces intricate textures, while multi-ink compatibility enables special color effects. Efficient delivery is ensured even for small-batch, multi-style orders.
Precautions for Machine Use:
Operation Guide
Before powering on, ensure stable three-phase power supply. Install the roll material and calibrate media tension. Select print mode via the touchscreen, match ink with media type, and confirm parameters before starting print. After completion, promptly clean the printhead and store the roll material. Regularly upgrade firmware to ensure equipment stability and enhance long-term usability.
Certificate of Qualification:


Product Customization Service Process:

Packaging & Transportation:

Why Choose US:

Hopetech pays attention to quality as well as reseach and development. We have a history of more than 15 years in digital printing. Our equipments can be found in different industries around the world.
1. The factory covers an area of more than 20,000 square meters
2. The total annual R&D investment more than 1 million US dollars
3. High-quality agents around the world
4. More than 300 employees
5. 28 years of history
Customer Evaluation:

Contact Information:


Customer FAQ:
G1-I16 Wood Grain Paper Printer FAQ
Q1: How can I maintain the printhead daily to prevent clogging and ensure print quality?
A1: Clean the printhead promptly with dedicated cleaning solution after printing. Keep the printhead moist and sealed during idle periods. Use genuine compatible ink and perform regular printhead calibration. These simple steps effectively prevent clogging and maintain print precision.
Q2: What media types are compatible with the device? Are there roll specifications?
A2: Core compatibility includes wood grain paper, transfer paper, wallpaper, decorative films, and other media compatible with sublimation or water-based pigment inks. Supports industrial rolls up to 1000mm diameter for large-scale production.
Q3: How can print capacity and precision be adjusted based on order requirements?
A3: The touchscreen allows direct switching between high-definition and high-speed dual modes. High-definition mode (625㎡/hour) prioritizes texture reproduction, while high-speed mode (783㎡/hour) boosts output. No complex adjustments are needed—simply switch modes to adapt to different orders.
Q4: Are there special power supply requirements for industrial operation?
A4: The equipment utilizes a three-phase 380VAC, 18kW industrial-grade power system, fully compatible with standard factory industrial grids. It features strong interference resistance and supports 24/7 continuous operation without requiring additional power line modifications.
