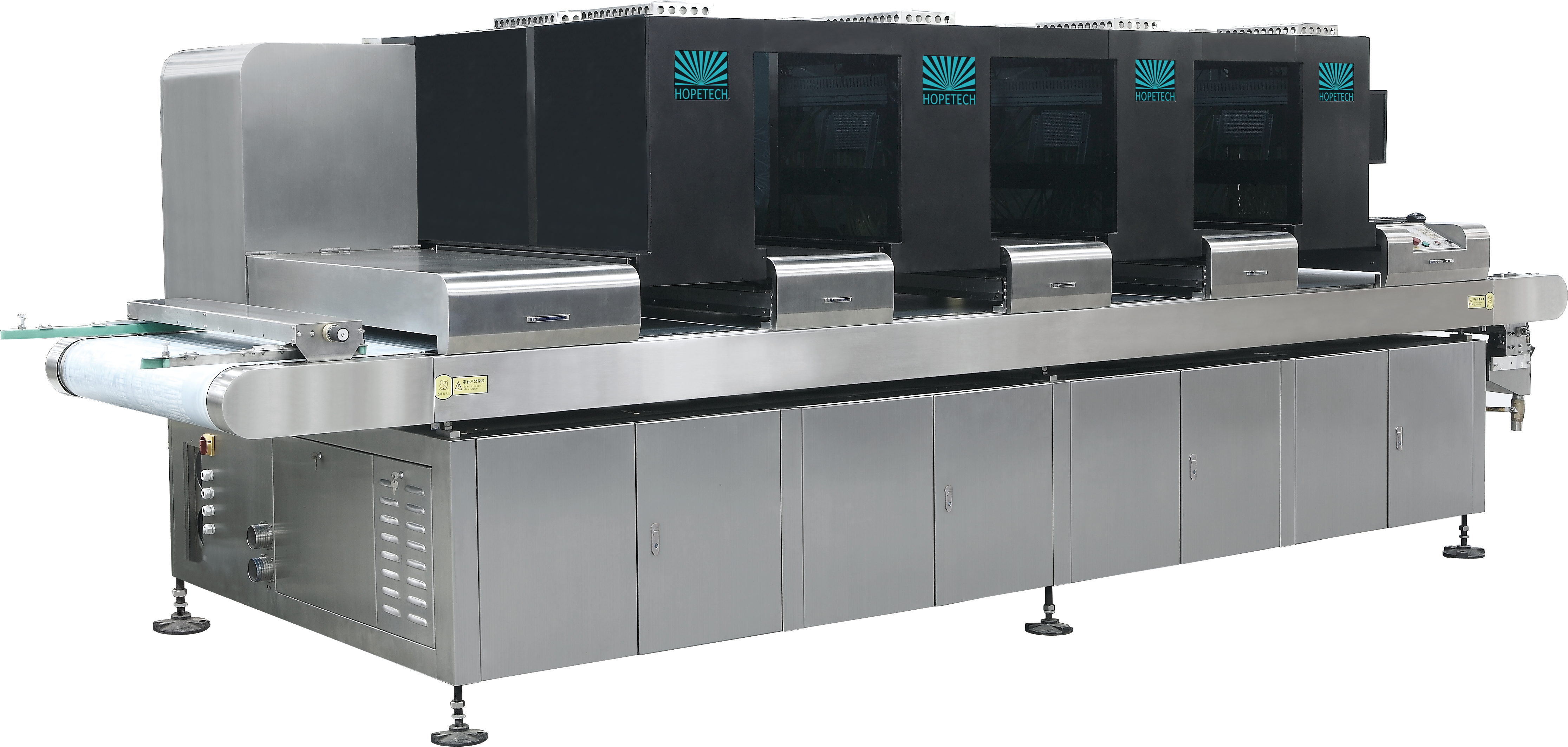

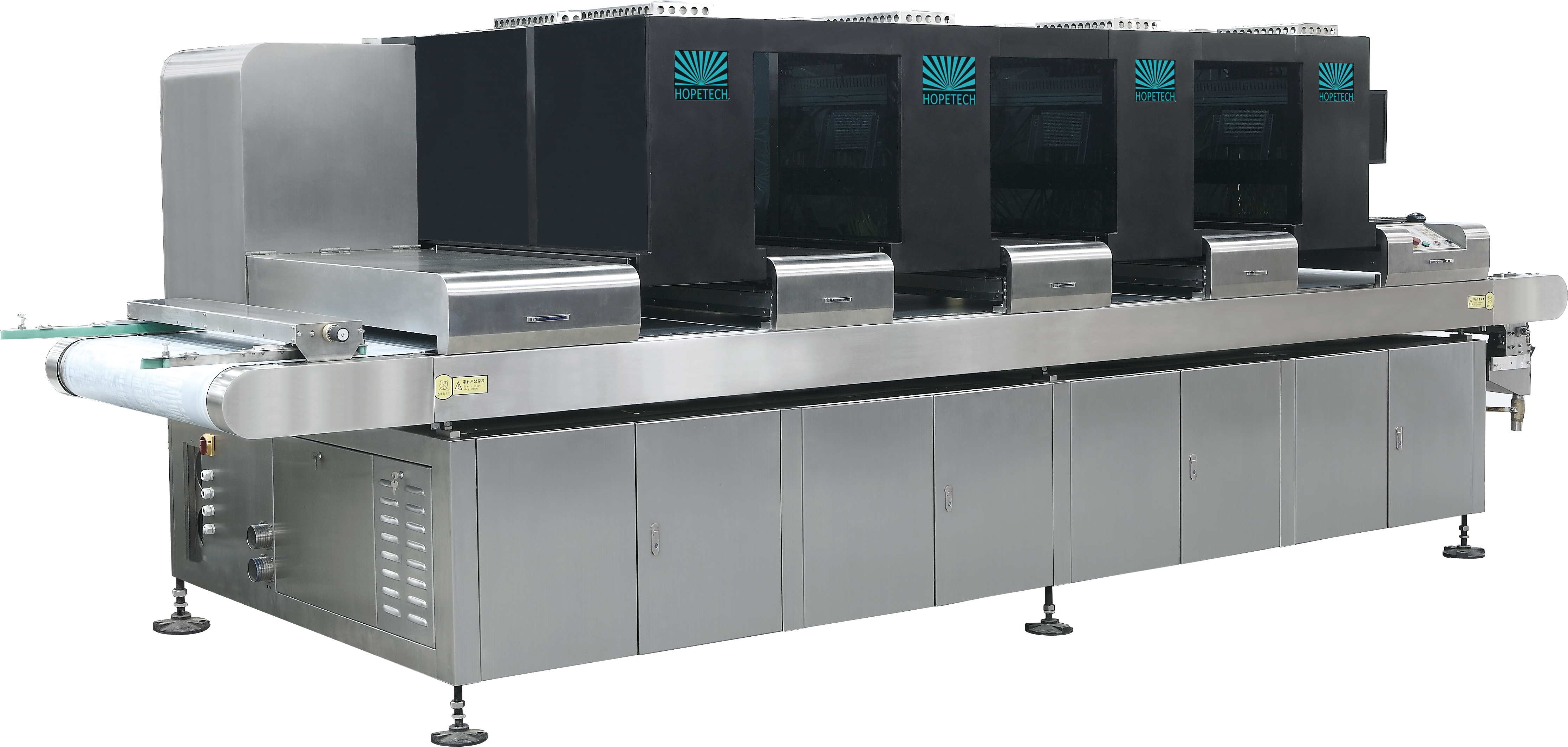

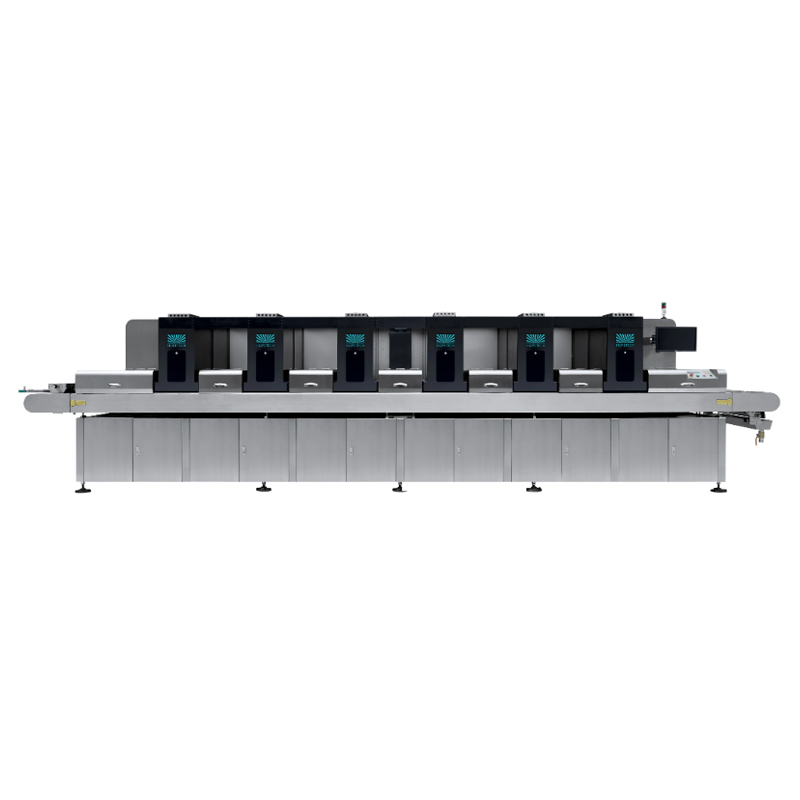

High-Resolution TW Ceramic Inkjet Printer for Industrial Use

Product Features and Advantages：

1. Versatile Printhead Configuration for Diverse Printing Needs

The TW series supports mainstream printheads like the Dimatix SG1024/SG6000, covering core models such as the Xaar 2002+ and Seiko RC1356. It adapts to various printing scenarios involving different materials and precision requirements, fulfilling diverse demands from  industrial-grade batch production to high-definition pattern creation. This makes it a printing solution that balances flexibility and professionalism.

2. Wide-format multi-color channels for comprehensive printing coverage

This series offers 1-12 color printing channels with a maximum print width of 2006mm (TW2000 model). Supporting 2-12 color printing systems, it handles basic dual-color printing while also delivering complex patterns with high color gamut and gradient effects. It meets wide-format production demands across industries like advertising graphics and packaging printing.

3. Monolithic Structure for High Precision and Easy Maintenance

The monolithic structure design significantly enhances chassis stability, ensuring printing accuracy at its core. Ample maintenance space is reserved for streamlined equipment servicing and component replacement. Compared to traditional modular models, maintenance efficiency improves by approximately 30%, with lower long-term failure rates.

4. Intelligent Integrated Cleaning System Extends Core Component Lifespan

Featuring integrated modules for automatic printhead cleaning, printhead protection, and waste ink removal, cleaning speed is 40% faster than conventional models. This effectively reduces nozzle clogging and ink dripping issues, extending printhead lifespan by over 25%. It lowers long-term consumable replacement costs and enhances overall equipment efficie



Product Specifications:

Model	Color Printing System	Max Printing Width(mm)				Installed Power (kw)	Length (mm)	Width (mm)	Height (mm)	Height of Printing Platform (mm)	Weight (t)
		DimatixSG1024/SG600	DimatixSG600MC2C	RC1536	Xaar2002+
TWS+	2-6	770	775	750-1	765-1	13	5173	2055	2143	1000-1070	4.2
TWD+	2-6	1220-1	1230-3	1180-3	1185-4	18	4780	2450	2205	1000-1070	4.8
TWK+	2-6	1415-3	1425-4	1395-4	1390	18	5170	2650	2125	1000-1070	5.2
TWX	4-8	580-3	585-4	535	560-4	13	5380	1616	2125	1000-1070	4
TWZ	4-8	1030-3	1035-2	965-2	1045-3	18	5780	2027	2125	1000-1070	4.5
TWD	4-8	1220-1	1230-3	1180-3	1185-4	18	6105	2425	2125	1000-1070	5.2
TWK	4-8	1415-3	1425-4	1395-4	1390	18	6105	2650	2125	1000-1070	6.6
TWZ-PLUS	6-10	1030-3	1035-2	965-2	1045-3	18	6706	2190	2125	1000-1070	6.1
TWK-PLUS	6-10	1415-3	1425-4	1395-4	1390	23	7055	2650	2125	1000-1070	7.7
TWX-MAX	6-12	580-3	585-4	535	560-4	18	7975	1765	2125	1000-1070	5.6
TWZ-MAX	6-12	1030-3	1035-2	965-2	1045-3	23	7975	2220	2125	1000-1070	7
TWD-MAX	6-12	1220-1	1230-3	1180-3	1185-4	23	7975	2425	2125	1000-1070	7.3
TWK-MAX	6-12	1415-3	1425-4	1395-4	1390	23	8000	2650	2125	1000-1070	8.6
TW2000	6-12	1995-5	2005-3	1930-4	2020-5	27	7976	3220	2225	1000-1070	13

Application Scenarios:

TW ceramic inkjet printers have specific application scenarios categorized as follows:

Ceramic Tile Production: Compatible with tiles of various specifications, suitable for printing patterns on common ceramic tiles such as floor tiles and wall tiles. This covers tile supply scenarios for residential renovations and commercial space walls and floors.

Large-format tile processing: Supports a maximum printing width of 2300mm and a finished tile width of up to 2 meters, meeting inkjet printing demands for oversized tiles (e.g., large-format floor/wall tiles for living rooms, exhibition halls, and other expansive spaces).

High-Precision Tile Production: Featuring an integrated structure and dust-proof design, it serves high-precision tile categories demanding strict print accuracy and clean production environments (e.g., stone-effect or wood-effect decorative tiles with high-fidelity reproduction), ensuring pattern fineness and finished product quality.

Batch ceramic production: Integrated with automatic printhead cleaning and multi-axis waste ink recovery systems, it supports large-scale, continuous tile production in ceramic factories, boosting efficiency while reducing consumable waste.

Precautions for Machine Use：

When operating the TW ceramic inkjet printer, first match tile specifications to the corresponding workstation. After ensuring a clean environment with the integrated dust-proof structure, initiate the process. During printing, enable automatic nozzle cleaning to maintain precision. Upon completion, utilize the multi-axis waste ink recycling function for efficient and machine-protective processing.

1. When matching tile specifications, do not exceed the maximum processing width of 2300mm;

2. Regularly inspect the sealing integrity of dust-proof structures to prevent dust from affecting precision;

3. Activate the automatic cleaning nozzles according to operational frequency; do not start them directly after prolonged inactivity.

Certificate of Qualification：

Product Customization Service Process：

Packaging & Transportation：

Why Choose US:

、

Hopetech pays attention to quality as well as reseach and development. We have a history of more than 15 years in digital printing. Our equipments can be found in different industries around the world.

1. The factory covers an area of more than 20,000 square meters

2. The total annual R&D investment more than 1 million US dollars

3. High-quality agents around the world

4. More than 300 employees

5. 28 years of history

Customer Evaluation:

Contact Information:

Customer FAQ:

1. Q: Which printing devices are compatible with the TW series?

A:The TW series is compatible with Dimatix SG1024/SG6000,  Xaar 2002 and Seiko RC1356, covering multiple common devices with broad adaptability.

2. Q: How does this series ensure print accuracy and component durability?

A:It employs an integrated high-seal structure to protect printing components. Combined with automatic printhead cleaning and high-protection ink design, it maintains stable print accuracy while extending component lifespan.

3. Q: What are the differences in color systems across TW models?

A TW series color systems range from 2-4 colors to 6-12 colors. For example, the TW5 supports 6-10 colo00 supports 6-12rs while the TW2 colors, catering to varying print color richness requirements.
