Product Features and Advantages：

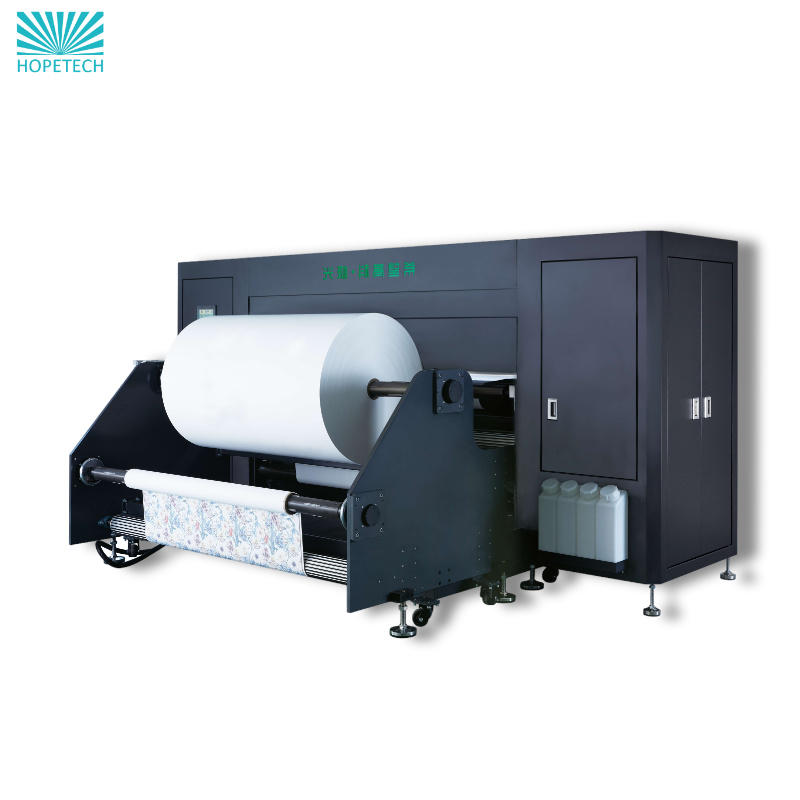

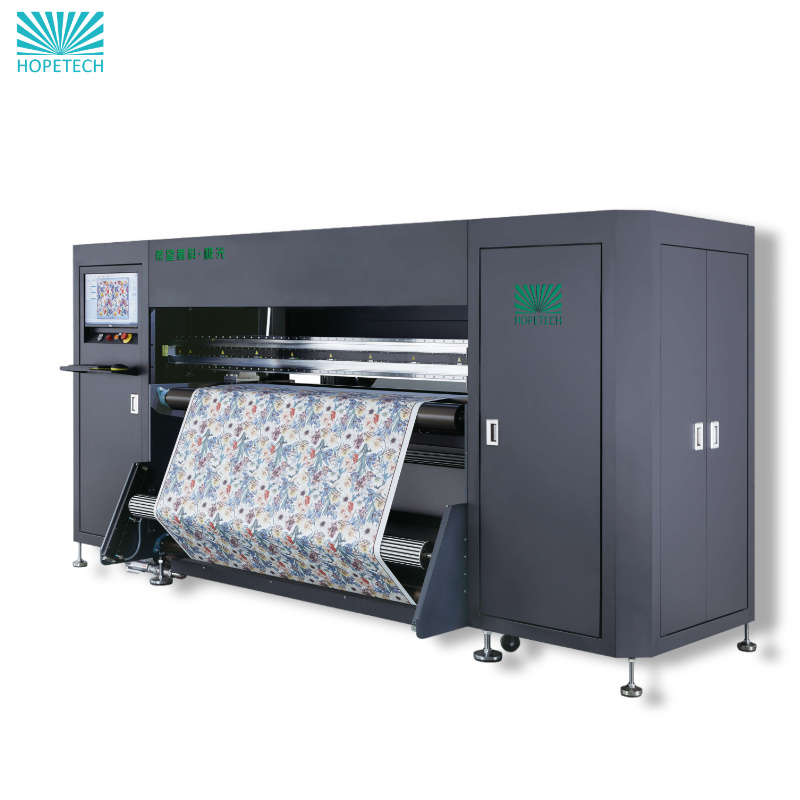

G1 Series Product Advantages and Core Features

The G1 Series is positioned as industrial-grade wide-format digital printing equipment, with core strengths centered around three key areas: “high-efficiency productivity, flexible adaptability, and stable reliability.” Its technical characteristics and supporting data are as follows:

1. Graded Printhead Configuration: Balancing Cost and Output

Offering printhead configurations ranging from 8 heads (G1-K8) to 16 heads (G1-116) to match diverse production scale requirements;

In 1-pass high-speed mode, maximum output reaches 783 m²/h (G1-116)—a 76% increase over entry-level models (G1-K8: 445 m²/h)—flexibly supporting both small-batch customization and large-scale production.

2. “Dual-Mode Printing” for balanced image quality and efficiency

Supports switching between “High-Definition Mode + High-Speed Mode”: High-Definition Mode (e.g., G1-M8) outputs 520㎡/h with fine detail, while High-Speed Mode (G1-116) achieves 783㎡/h output;

Adaptable to diverse order requirements—select High-Definition Mode for premium decorative materials and High-Speed Mode for bulk basic materials, balancing quality and delivery efficiency.

3. “Wide Format + Large Roll Diameter” for Industrial-Grade Continuous Production

Uniformly configured with 1900mm ultra-wide print width + 1000mm maximum roll diameter, reducing media roll change frequency;

Combined with a 2550×3730mm chassis layout, supports extended continuous printing, increasing single-batch production time by over 40% (compared to small-diameter roll equipment).

4. “Multi-Media + Multi-Ink Compatibility” Covers All Decorative Applications

Supports printing on diverse media including transfer paper, wood grain paper, film, and wallpaper, catering to decorative building materials and advertising materials;

Compatible with both thermal sublimation and water-based pigment inks, enabling dual processes of “high-temperature transfer + instant drying at room temperature.” A single device covers over 80% of decorative printing applications.

5. “Standardized Hardware Configuration” ensures stability and controllable maintenance costs

Uniformly equipped with three-phase 380VAC/18kW power supply and 2200kg heavy-duty chassis design across the series, enhancing operational stability by 30% (compared to lightweight counterparts in the same class);

Unified dimensions and power standards reduce post-maintenance and spare part replacement costs by 25%, faci

Product Specifications:

Application Scenarios:

G1 Series Product Applications

1. Decorative Building Materials Sector

Supports sublimation printing on wood grain paper and transfer paper, enabling bulk production of wood-effect decorative panels, furniture veneers, and similar materials. Taking the G1-116 model as an example, its high-speed mode can print 783 square meters per hour, supporting large-scale building material factories in fulfilling bulk orders.

2. Advertising and Soft Furnishing Production

Prints patterns on wallpaper and film substrates for interior soft furnishings like wallcoverings and advertising lightbox films. The 1900mm wide format minimizes splicing, while the 1000mm large roll diameter enables continuous production of long-run soft furnishing materials.

3. Custom Decorative Material Processing

High-definition mode enables printing intricate textures on specialty papers and decorative films, creating premium customized materials (e.g., artistic wallpaper, personalized wood-grain panels). This balances efficiency for both small-batch customization and medium-volume production.

4. Industrial-Grade Transfer Product Processing

Print patterns onto transfer paper using dye-sublimation ink for subsequent transfer onto substrates like textiles and metal plates. Ideal for transfer processes in industries such as decorative hardware and outdoor furniture, serving end-use scenarios in building materials and home furnishings.

Precautions for Machine Use：

1. Media Preparation

Secure roll media (e.g., transfer paper/wood grain paper) onto the unwind roll, ensuring the roll diameter does not exceed 1000mm. Select the appropriate ink (sublimation/water-based pigment) based on media type and inspect printhead status.

2. Mode and Parameter Settings

Select “High Definition Mode” or “High Speed Mode” on the operation interface:

Select High-Definition Mode for intricate patterns; choose High-Speed Mode for bulk production.

Enter print width (≤1900mm) and confirm media tension parameters (adjust according to roll diameter).

3. Initiate Printing

After importing the design file, click “Preview” to confirm color and positioning. Once verified, start continuous printing. The device supports continuous operation with large roll diameters, allowing real-time monitoring of printhead and ink levels during the process.

4. Finishing and Maintenance

Upon completion, cut the media and organize the finished product. Execute the automatic printhead cleaning program, power down the device, and complete routine maintenance.

Certificate of Qualification：

Product Customization Service Process：

Packaging & Transportation：

Why Choose US:

Hopetech pays attention to quality as well as reseach and development. We have a history of more than 15 years in digital printing. Our equipments can be found in different industries around the world.

1. The factory covers an area of more than 20,000 square meters

2. The total annual R&D investment more than 1 million US dollars

3. High-quality agents around the world

4. More than 300 employees

5. 28 years of history

Customer Evaluation:

Contact Information:

Customer FAQ:

1. Q: How much does production capacity vary between different models in the G1 series?

A: Taking the 1-pass high-speed mode as an example, the entry-level G1-K8 achieves 445㎡/h, while the top-tier G1-116 reaches 783㎡/h. Upgrading models boosts capacity by up to 76%, accommodating diverse production scale requirements.

2. Q: What printing materials does the equipment support?

A: It supports transfer paper, wood grain paper, film, wallpaper, and other media. Compatible with sublimation/water-based pigment inks, it covers over 80% of application scenarios in decorative building materials, soft furnishings, and more.

3. Q: Is daily maintenance complicated?

A: Not at all. Simply perform automatic printhead cleaning after printing. Standardized hardware ac

ross the entire series ensures universal spare parts and low maintenance costs, allowing even beginners to quickly master basic upkeep.

4. Q: What are the power and space requirements for the equipment?

A: Requires a three-phase 380VAC power supply. The main unit dimensions are 2550×3730×1800mm, with a weight of 2200kg. Suitable industrial production space must be res.
