Product Features and Advantages：

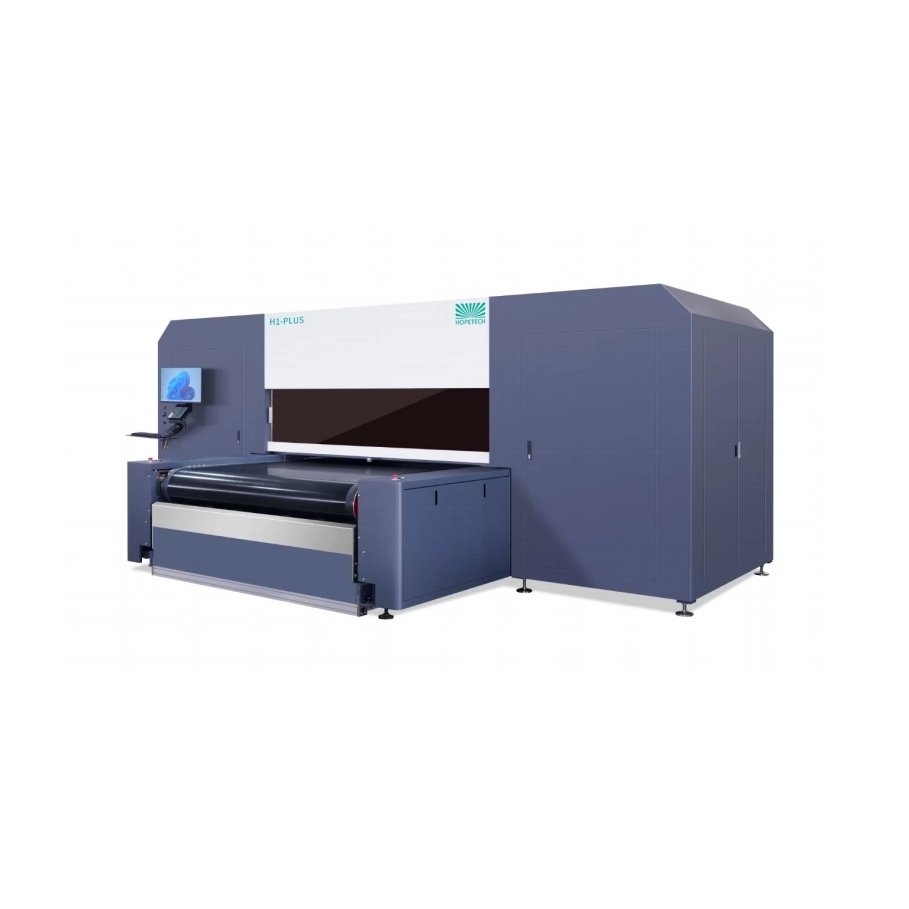

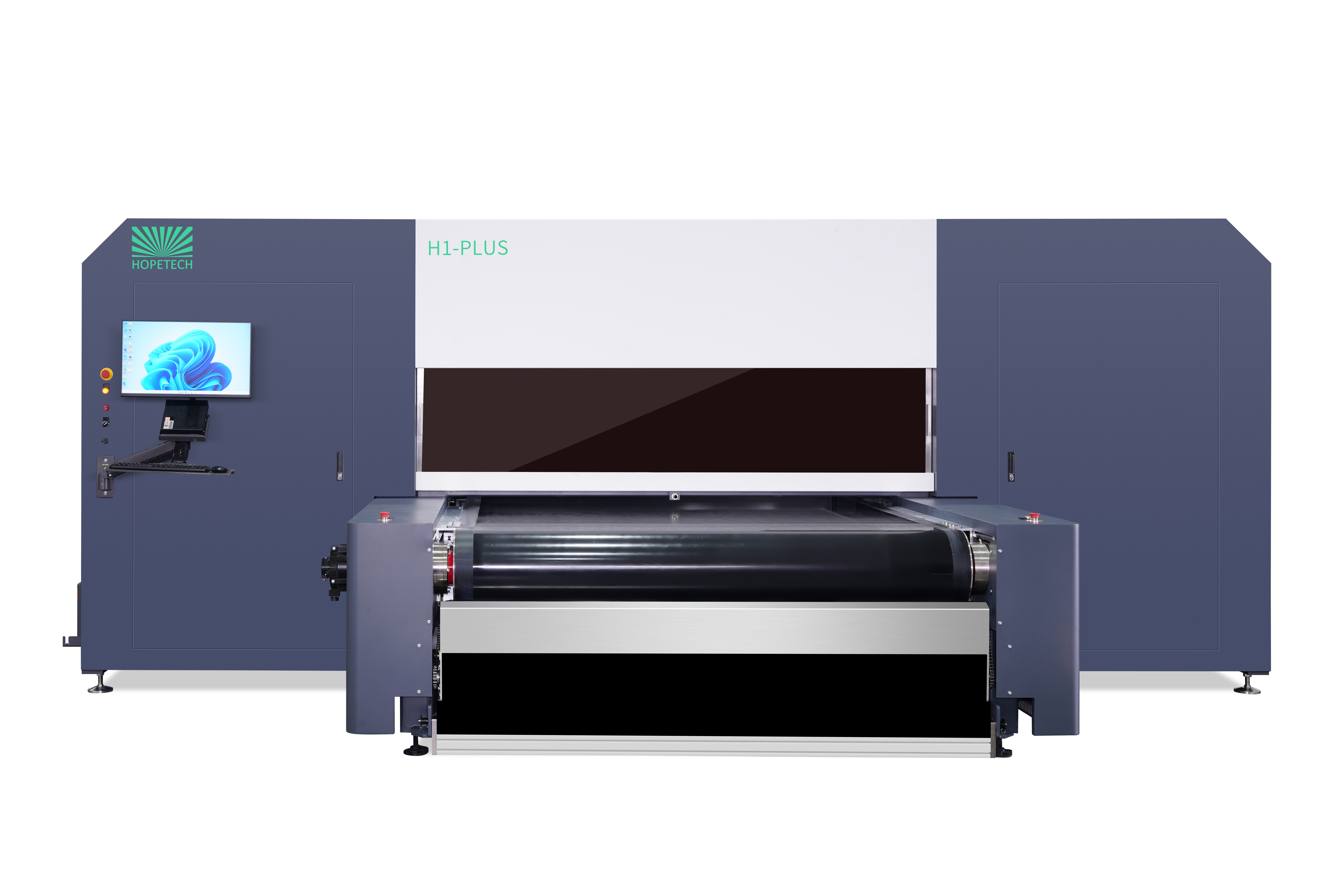

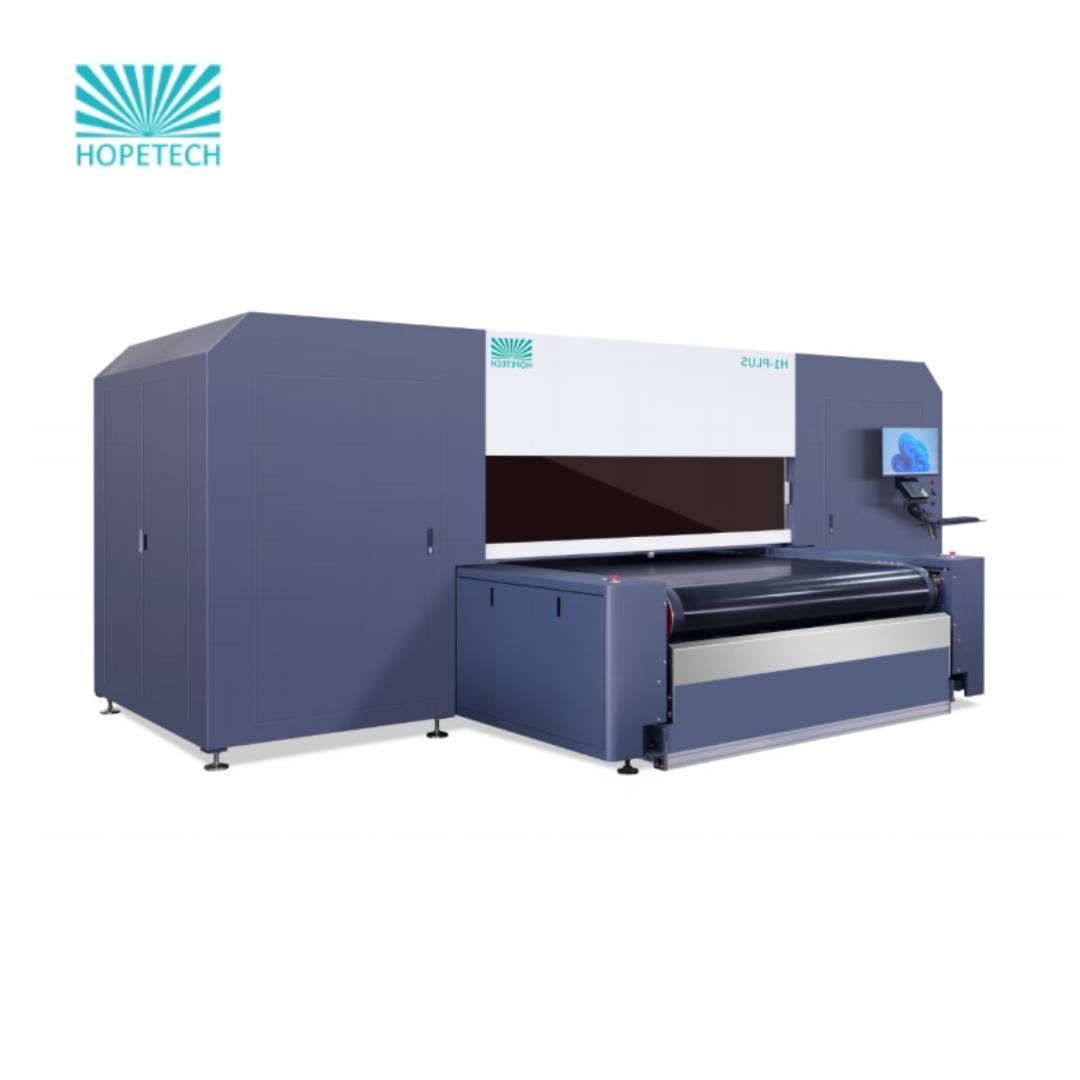

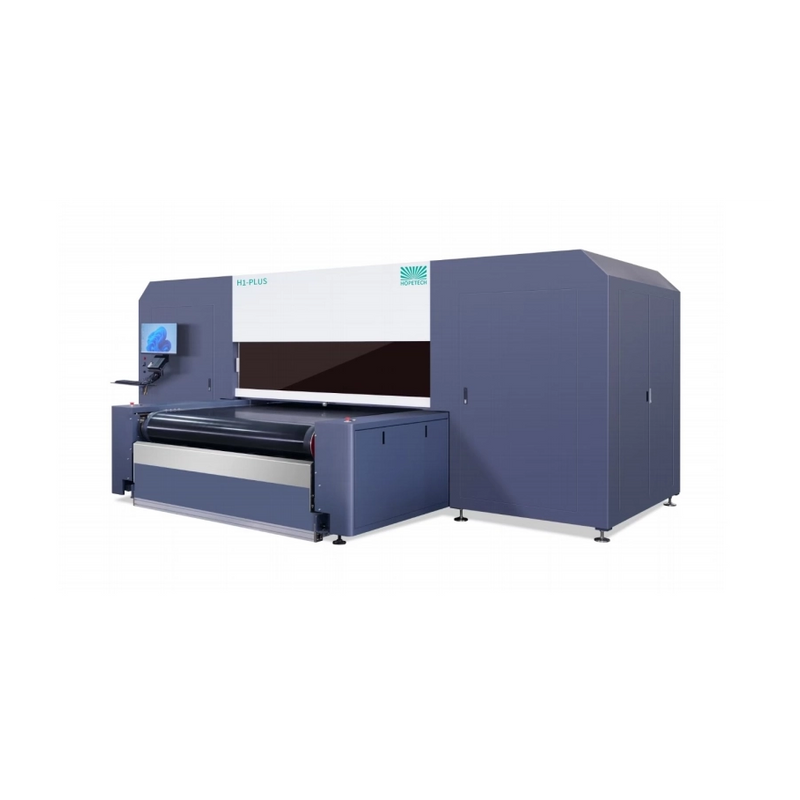

H1-PLUS Series Product Advantages and Features

H1-PLUS is a wide-format digital textile printing solution designed for the textile industry. Its core strengths lie in “ultra-wide format productivity, fabric compatibility, and high-efficiency stability.” Key technical features and supporting data are as follows:

1. 「Ultra-wide format + High productivity」Boasting a maximum print width of 1950mm, the H1-PLUS-K64 delivers a top speed of 2318㎡/h in 1-pass high-speed mode. A single machine can support daily printing volumes exceeding 20,000㎡, significantly boosting order fulfillment efficiency for textile manufacturers.

2. “Multi-Ink + Full Fabric Coverage” for All Textile Applications

Compatible with reactive, disperse, acid, and pigment inks, it supports printing on all mainstream fabrics, including cotton, linen, silk, wool, polyester, nylon, and blended materials. This versatility covers over 80% of common textile applications, from apparel to home goods, allowing a single machine to handle diverse production needs.

3. “Unified High-Spec Hardware” Ensures Stable Industrial-Grade Operation

The system is built with Kyocera EX600RC printheads and runs on a robust three-phase 380VAC/30kW power supply. At 9500kg, its heavy-duty, standardized hardware delivers 30% higher continuous-operation stability than lighter alternatives, minimizing downtime risks on the production line.

4. “Dual-Mode Printing” Balances Quality and Efficiency

Offers both high-definition and high-speed printing modes:

• High-definition mode (4 Pass): Delivers 640㎡/h for high-precision patterns and detailed designs.

• High-speed mode: Offers 708㎡/h in 4-pass mode and over 2318㎡/h in 1-pass mode, ideal for high-volume basic fabric production.

Product Specifications:

H1-PLUS
Machine Model		H1-PLUS-K64
Max Printing Width		1950mm
Printhead Brand/Type		Kyocera EX600RC
Printhead QTY/ Color		68 Heads / 8 Colors (8*8)
Printing Mode		High Definition Mode	High Speed Mode
Production (m2/h)	1 Pass	2153	2318
	2 Pass	1178	1280
	4 Pass	640	708
Ink Type		Reactive/Disperse/Acid/Pigment
Applicable Medium		Cotton, Linen, Silk, Wool, Polyester, Nylon, Blended Materials
Power Supply		3 Phase 380VAC, 30kW
Printer Dimension(LxWxH)		5710×4975×2275mm
Printer Weight		9500kg

Application Scenarios:

H1-PLUS Series Application Scenarios

• Bulk Printing of Apparel Fabrics

  Compatible with cotton, linen, polyester, and a wide range of other apparel fabrics. It delivers high-speed printing at 2318㎡/h for large-batch production of basic fabric patterns, while also supporting high-definition output for intricate designs on premium garments.

• Custom Home Textile Production

  Ideal for bed linens, curtains, and other home textile applications. Compatible with both reactive and disperse inks, it enables complex pattern printing on materials like silk and wool. The 1950mm ultra-wide format supports continuous production of large-format home textiles, eliminating the need for additional splicing processes.

• Textile Decorative Material Processing

  Well-suited for upholstery fabrics, carpets, and other decorative textiles. It supports diverse fabric-ink combinations, and its high-definition mode ensures highly accurate texture reproduction, meeting the visual quality requirements of mid-to-high-end decorative materials.

Precautions for Machine Use：

H1-PLUS Operation Procedure (Simplified Version)

1. Secure the fabric roll (compatible with 1950mm width) and select the corresponding ink type.

2. Choose between “High Definition” or “High Speed Mode” on the control interface, import the design pattern, and perform a pre-print test.

3. Confirm all parameters, then start continuous printing. Monitor ink levels and printhead status throughout the process.

4. Collect the printed material after completion, run automatic printhead cleaning, and perform daily maintenance tasks.

5. The streamlined workflow ensures easy operation, balancing high efficiency with user-friendliness.

Certificate of Qualification：

Product Customization Service Process：

Packaging & Transportation：

Why Choose US:

Hopetech pays attention to quality as well as reseach and development. We have a history of more than 15 years in digital printing. Our equipments can be found in different industries around the world.

1.The factory covers an area of more than 20,000 square meters

2.The total annual R&D investment more than 1 million US dollars

3.High-quality agents around the world

4.More than 300 employees

Customer Evaluation:

Contact Information:

Customer FAQ:

Q1: What is the Minimum Order Quantity (MOQ)?

A: The minimum order quantity is 1 set.

Q2: What is the lead time for production and delivery?

A: Lead time depends on the specific model. We normally keep stock available for quick delivery.

Q3: How will you deliver the equipment?

A: For large machinery, we primarily arrange delivery by sea freight.

Q4: What payment methods do you accept?

A: We accept payment via T/T and L/C. A proforma invoice including all costs will be provided for order confirmation. Please note that import tariffs and customs clearance fees are the responsibility of the buyer.

Q5: Can you print our brand logo on the equipment (OEM)?

A: Yes, OEM and custom branding options are available for certain order quantities.

Q6: Can I request printing samples before ordering?

A: Yes, fabric printing samples are available. Please contact our sales team for details.

Q7: How do I know if this machine is suitable for my production requirements?

A: You can share your fabric, ink, and daily output requirements with our sales specialists to receive professional recommendations and technical solutions.

Q8: What is the warranty period for this machine?

A: We provide a standard 1-year warranty along with continuous online technical support.

Q9: How do we install and operate the equipment after delivery?

A: We offer free operational training and lifetime online technical guidance to help you set up and run the machine smoothly.
