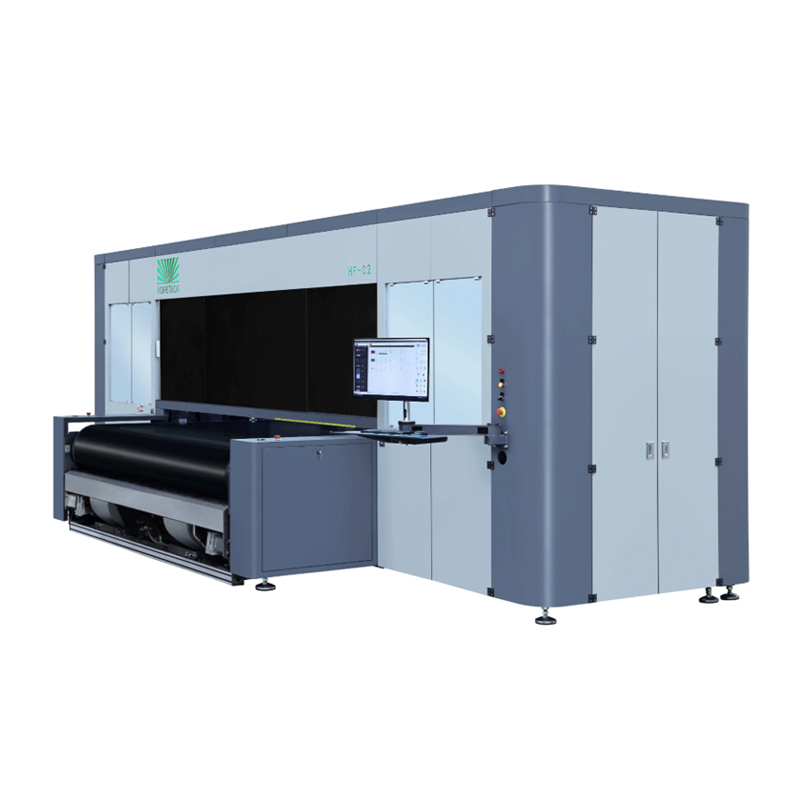

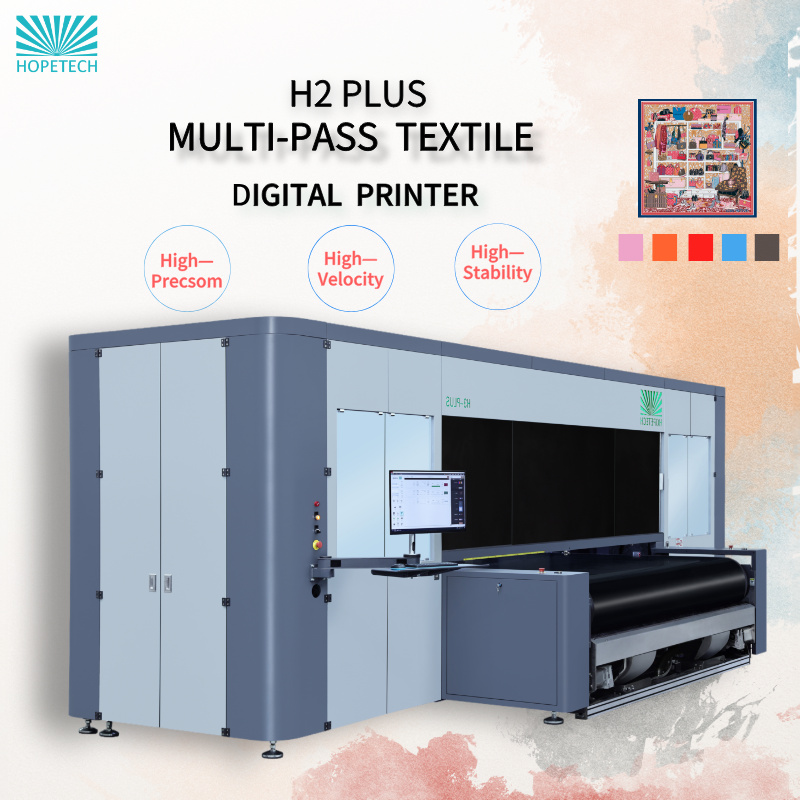

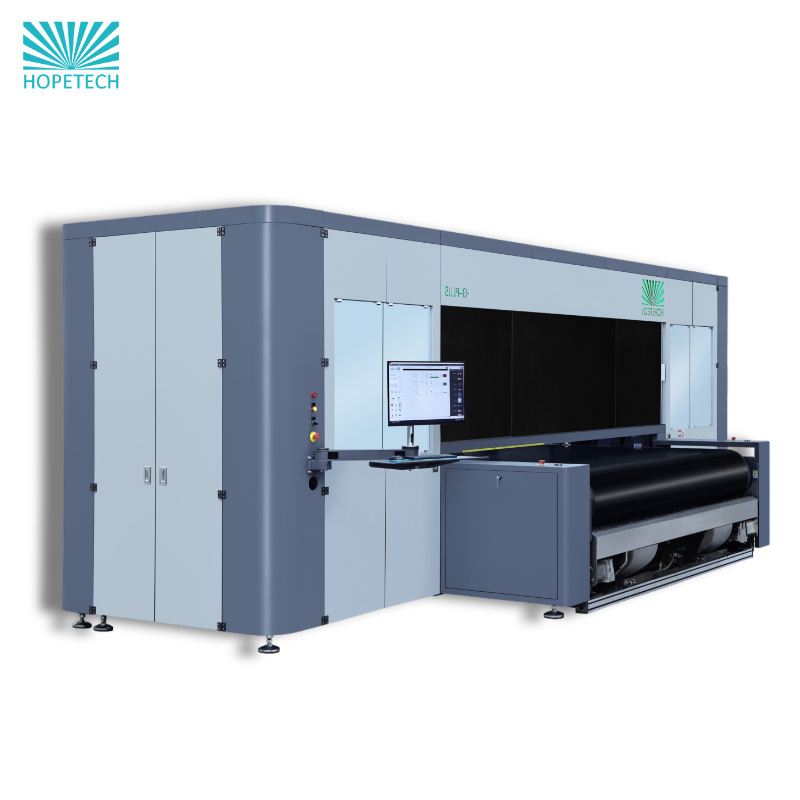

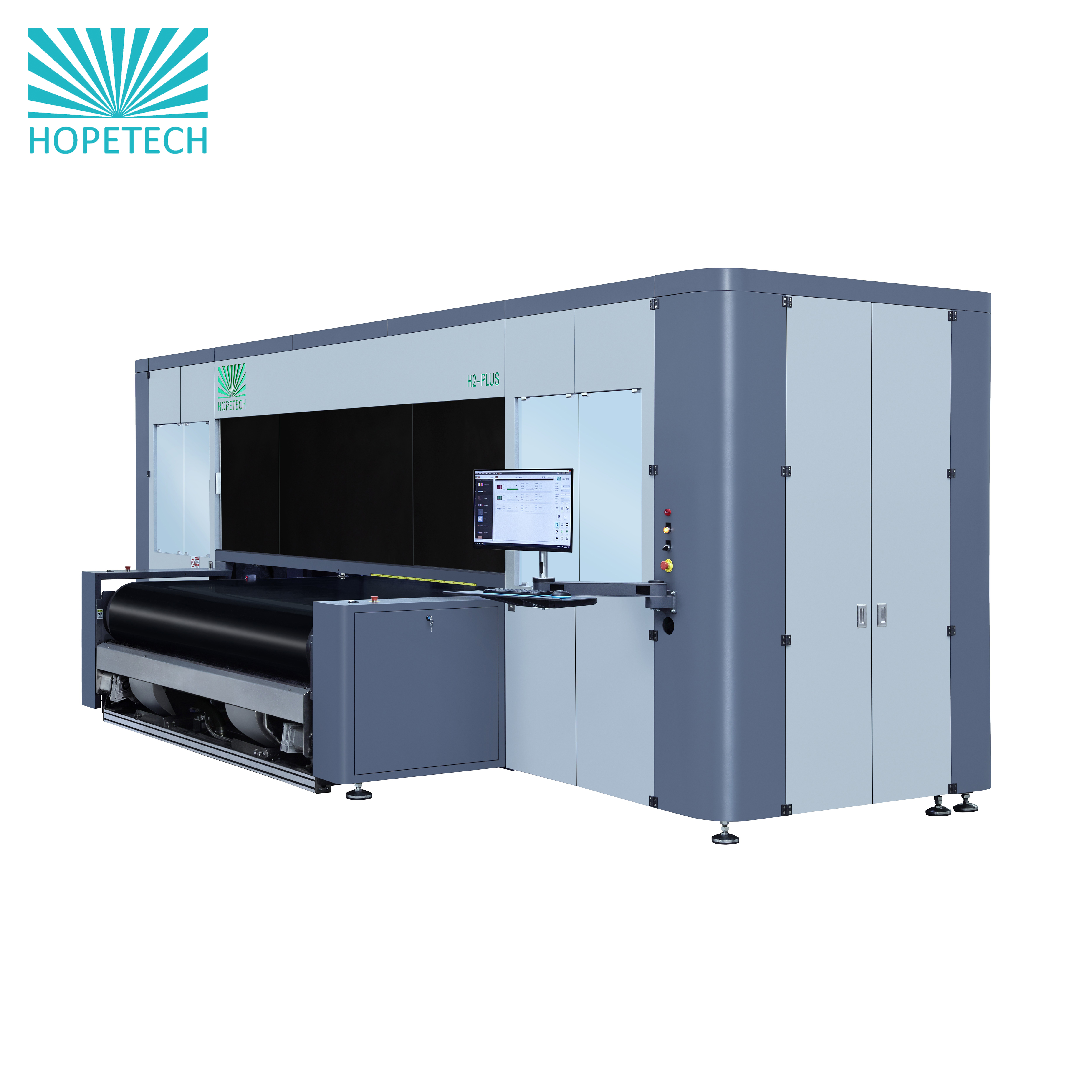

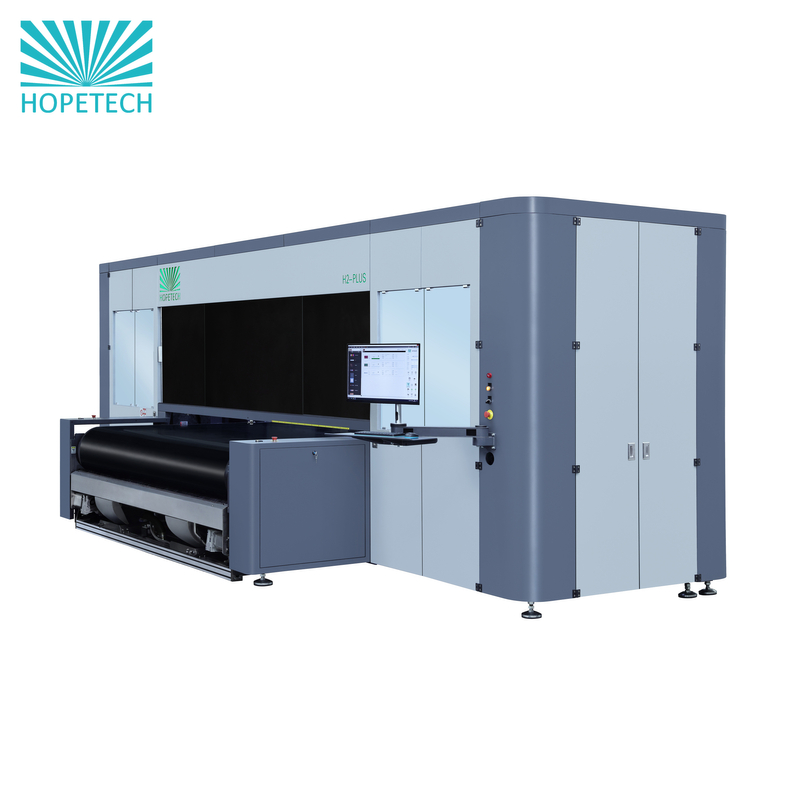

H2-plus Digital Printing Machine
HOPETECH

H2-PLUS Series Product Advantages and Features
H2-PLUS is a wide-format digital textile printing solution designed for the textile industry. Its core strengths lie in “ultra-wide format productivity, fabric compatibility, and high-efficiency stability.” Key technical features and
supporting data are as follows:
1. 「Ultra-wide format + High productivity」, suitable for large-scale textile production
With a maximum print width of 3600mm and high-speed mode (1 Pass), the H2-PLUS 448 achieves 2241㎡/h while the 644 model reaches 2337㎡/h. A single unit can support daily printing demands exceeding 20,000㎡, significantly boosting batch order fulfillment efficiency for textile mills.
2. “Multi-Ink + Full Fabric Coverage” for All Textile Applications
Compatible with reactive, disperse, and acid inks, it prints on mainstream fabrics including cotton, linen, silk, wool, and polyester. This covers over 80% of textile applications like apparel and home textiles, enabling a single machine to handle diverse production needs.

3. “Unified High-Spec Hardware” Ensures Stable Industrial-Grade Operation
Both models feature Kyocera EXX600RC printheads with a three-phase 380VAC/45kW power configuration. Weighing 18 tons, the highly standardized hardware achieves 30% greater continuous operation stability compared to lightweight equipment, reducing production line downtime risks.
4. “Dual-Mode Printing” Balances Quality and Efficiency
Offers both high-definition and high-speed printing modes:
- High-definition mode (4 Pass): Model 448 achieves 560㎡/h output, meeting high-precision printing demands.
- High-speed mode: Exceeds 2200㎡/h output, suitable for bulk basic fabric production, flexibly adapting to diverse order requirements.
Product Specifications:
H2-PLUS | |||||
Machine Model | H2-PLUS-K48 | H2-PLUS-K64 | |||
Max Printing Width | 2600mm | ||||
Printhead Brand/Type | Kyocera EX600RC | Kyocera EX600RC | |||
Printhead QTY/ Color | 48 Heads / 8 Colors(8*8) | 64 Heads / 8 Colors(8*8) | |||
Printing Mode | High Definition Mode | High Speed Mode | High Definition Mode | High Speed Mode | |
Production (m/h) | 1 Pass | 2049 | 2241 | 2605 | 2837 |
2 Pass | 1105 | 1217 | 1435 | 1578 | |
4 Pass | 569 | 614 | 757 | 819 | |
Ink Type | Reactive/Disperse/Acid/Pigment | ||||
Applicable Medium | Cotton,Linen,Silk,Wool,Polyester,Nylon,Blended Materials | ||||
Power Supply | 3Phase 380VAC,45kW | ||||
Printer Dimension(LxWxH) | 4820×6850×2530mm | ||||
Printer Weight | 18t | ||||
Application Scenarios:
H2-PLUS Series Application Scenarios
1. Bulk Printing of Apparel Fabrics
Compatible with cotton, linen, polyester, and other apparel fabrics. Achieves high-speed printing (2241㎡/h) for large batches of basic fabric patterns, while also enabling high-definition output for intricate designs on premium garments.
2. Custom Home Textile Production
Covers bed linens, curtains, and other home textiles. Compatible with reactive/disperse inks, enabling complex pattern printing on silk, wool, and other materials. The 2600mm ultra-wide format supports continuous production of large-format home textiles, reducing splicing processes.
3. Textile Decorative Material Processing
Suitable for upholstery fabrics, carpets, and other decorative textiles. Supports diverse fabric-ink combinations. High-definition mode delivers highly accurate texture reproduction, meeting visual demands for mid-to-high-end decorative materials.
Precautions for Machine Use:
H2-PLUS Operation Procedure (Simplified Version)
1. Secure fabric roll (compatible with 2600mm width), select corresponding ink;
2. Select “High Definition / High Speed Mode” on interface, import pattern and perform pre-printing;
3. Confirm parameters then initiate continuous printing, monitor ink/printhead status during process;
4. Collect material after printing, execute automatic printhead cleaning, complete daily maintenance.
5. Streamlined operation for easy mastery, balancing efficiency and user-friendliness.

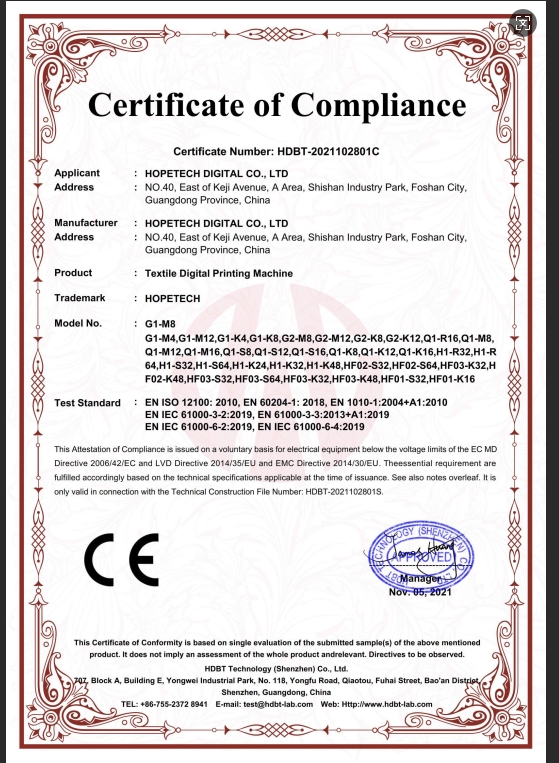

Certificate of Qualification:

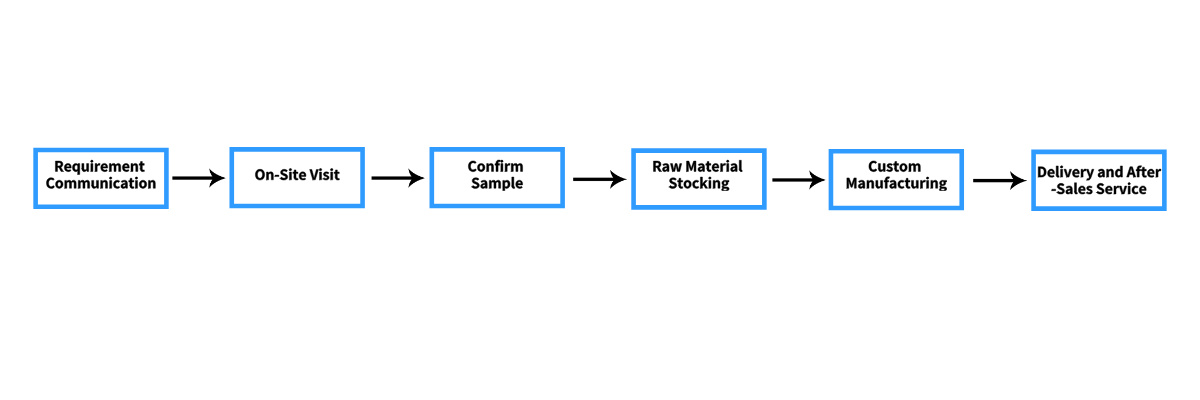

Product Customization Service Process:

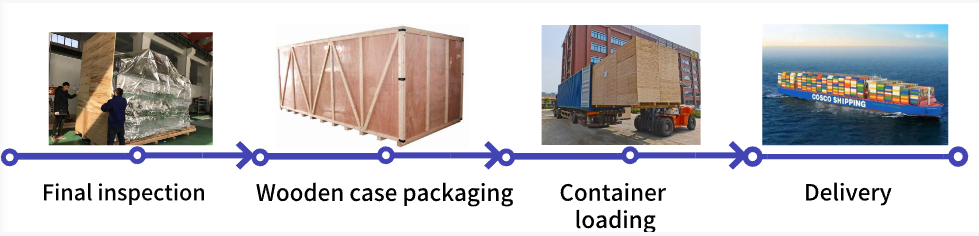

Packaging & Transportation:

Why Choose US:

Hopetech pays attention to quality as well as reseach and development. We have a history of more than 15 years in digital printing. Our equipments can be found in different industries around the world.
1.The factory covers an area of more than 20,000 square meters
2.The total annual R&D investment more than 1 million US dollars
3.High-quality agents around the world
4.More than 300 employees

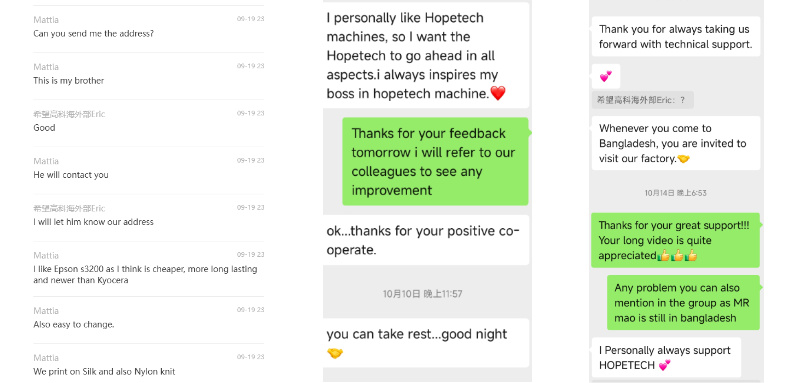

Customer Evaluation:

Contact Information:


Customer FAQ:
Q1: What is the maximum print width for the H2-PLUS series?
A: Both the H2-PLUS-K48 and K64 models offer a maximum print width of 2600mm, meeting the needs for printing on large-format fabrics.
Q2: What ink types are supported by these models?
A: They are compatible with various inks including reactive, disperse, acid, and pigment inks, covering common fabric materials such as cotton, linen, silk, polyester, and nylon.
Q3: What is the production efficiency in high-speed mode for 1 Pass?
A: K48 achieves 2049㎡/h in 1-pass high-speed mode, while K64 reaches 2241㎡/h, ideal for high-efficiency large-order production. Q4: What are the main power requirements for the equipment?
A: Requires three-phase 380VAC power supply. K48 consumes 45kW, K64 consumes 45kW. Installation must match corresponding power conditions.
