Product Features and Advantages：

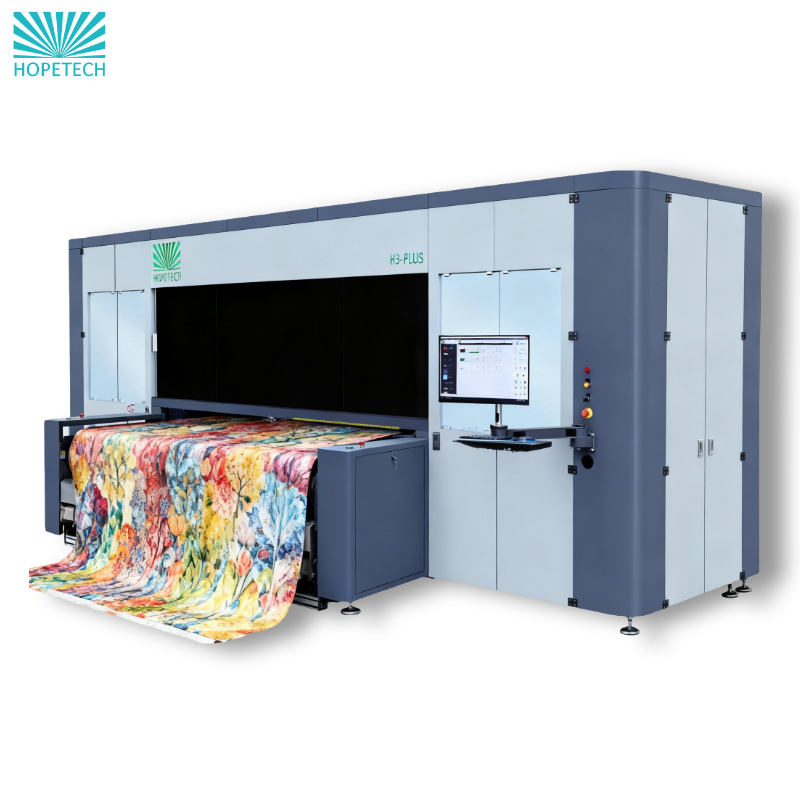

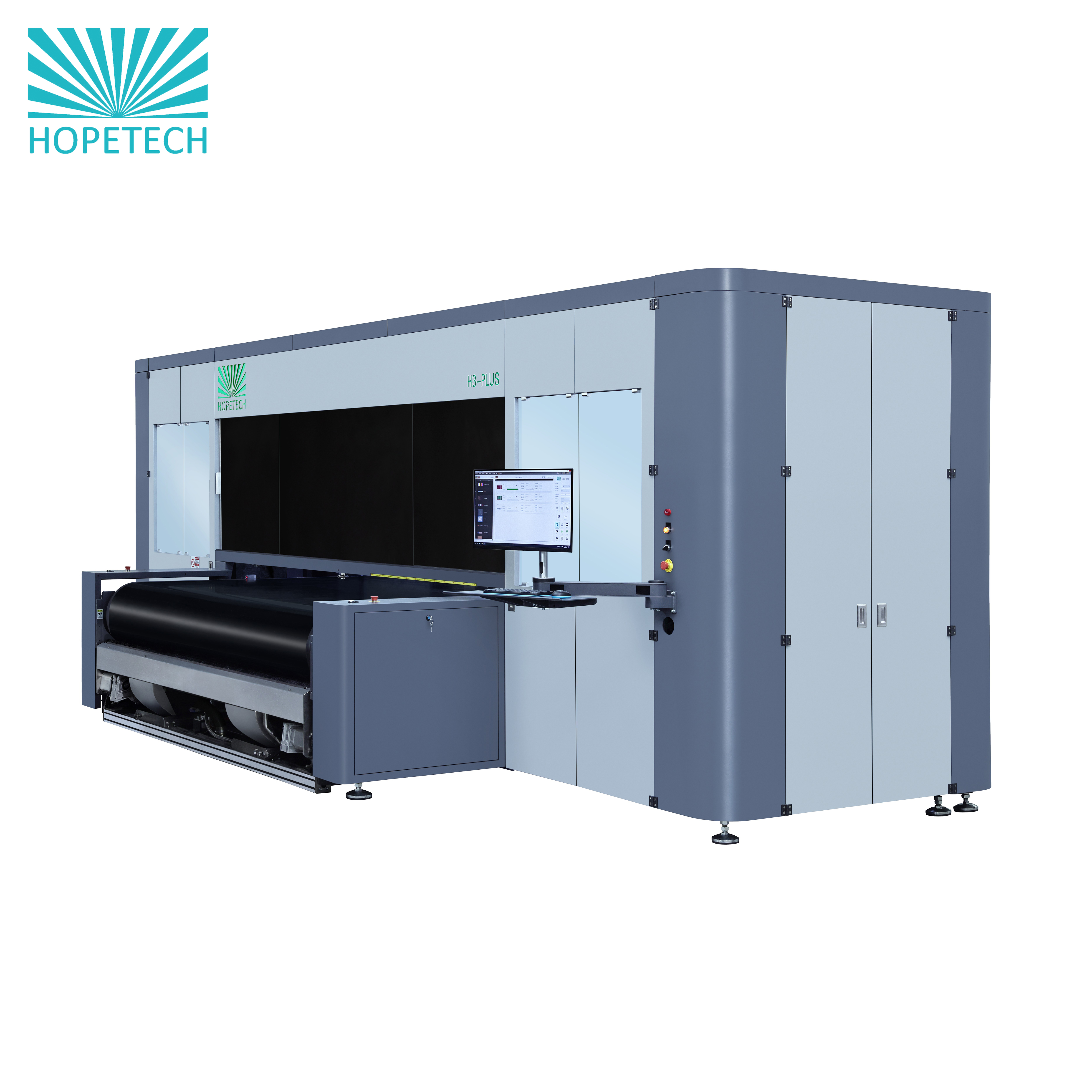

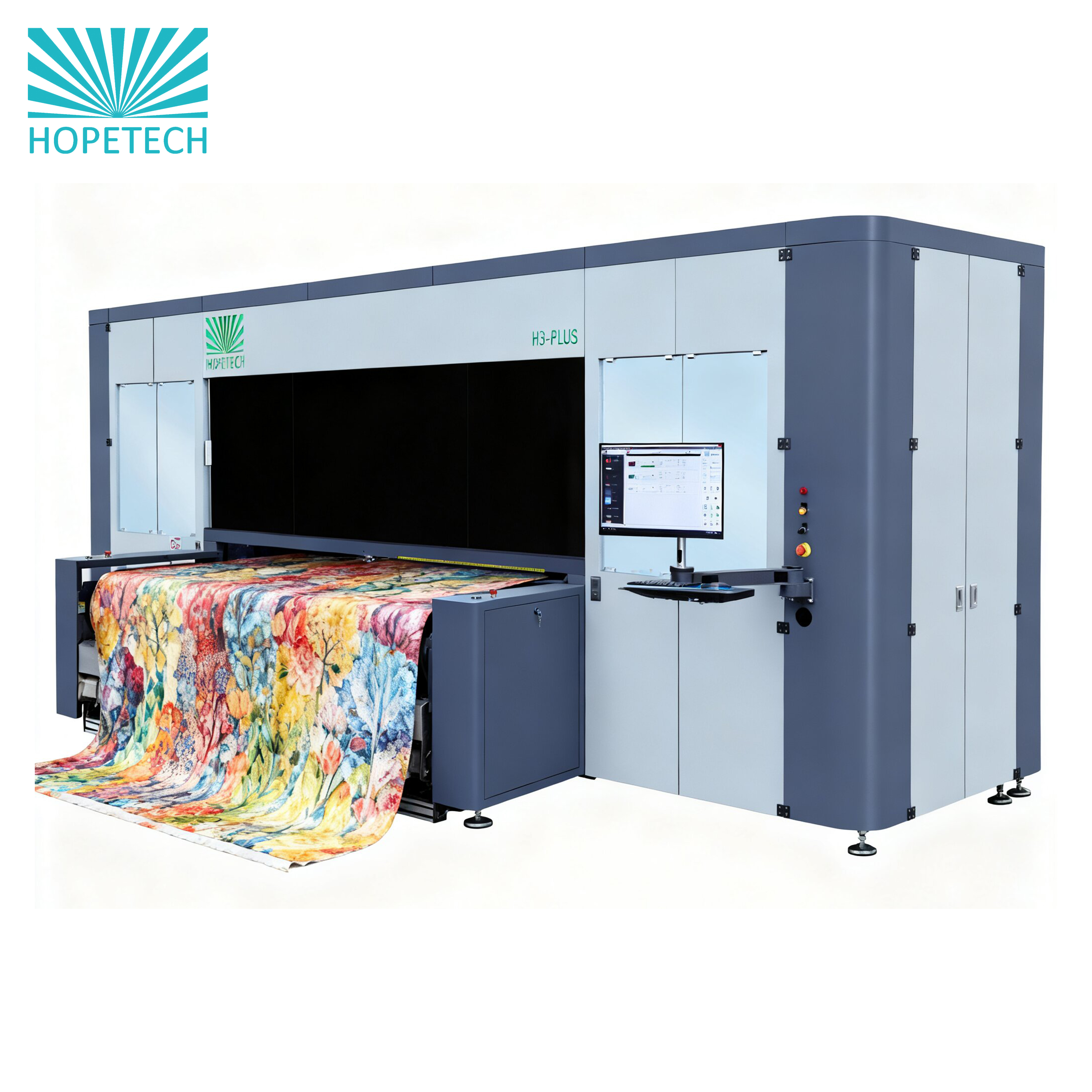

H3-PLUS Series Product Advantages and Features

H3-PLUS is a wide-format digital textile printing solution designed for the textile industry. Its core strengths lie in “ultra-wide format productivity, fabric compatibility, and high-efficiency stability.” Key technical features and supporting data are as follows:

1. 「Ultra-wide format + High productivity」Boasting a maximum print width of 3400mm, the H3-PLUS-K64 delivers a top speed of 3158㎡/h in 1-pass high-speed mode. A single machine can support daily printing volumes exceeding 20,000㎡, significantly boosting order fulfillment efficiency for textile manufacturers.

2. “Multi-Ink + Full Fabric Coverage” for All Textile Applications

Compatible with reactive, disperse, acid, and pigment inks, it supports printing on all mainstream fabrics, including cotton, linen, silk, wool, polyester, nylon, and blended materials. This versatility covers over 80% of common textile applications, from apparel to home goods, allowing a single machine to handle diverse production needs.

3. “Unified High-Spec Hardware” Ensures Stable Industrial-Grade Operation

The system is built with Kyocera EX600RC printheads and runs on a robust three-phase 380VAC/45kW power supply. At 20,000kg, its heavy-duty, standardized hardware delivers 30% higher continuous-operation stability than lighter alternatives, minimizing downtime risks on the production line.

4. “Dual-Mode Printing” Balances Quality and Efficiency

Offers both high-definition and high-speed printing modes:

• High-definition mode (4 Pass): Delivers 822㎡/h for high-precision patterns and detailed designs.

• High-speed mode: Offers 899㎡/h in 4-pass mode and over 3158㎡/h in 1-pass mode, ideal for high-volume basic fabric production.

Product Specifications:

H3-PLUS
Machine Model		H3-PLUS-K48		H3-PLUS-K64
Max Printing Width		3400mm
Printhead Brand/Type		Kyocera EX600RC		Kyocera EX600RC
Printhead QTY/ Color		48 Heads / 8 Colors (6*8)		64 Heads / 8 Colors (8*8)
Printing Mode		High Definition Mode	High Speed Mode	High Definition Mode	High Speed Mode
Production (m/h)	1 Pass	2253	2483	2877	3158
	2 Pass	1203	1338	1568	1738
	4 Pass	618	672	822	899
Ink Type		Reactive/Disperse/Acid/Pigment
Applicable Medium		Cotton, Linen, Silk, Wool, Polyester, Nylon, Blended Materials
Power Supply		3 Phase 380VAC, 45kW
Printer Dimension(LxWxH)		4820×7650×2530mm
Printer Weight		20t

Application Scenarios:

H3-PLUS Series Application Scenarios

1. Bulk Printing of Apparel Fabrics

Compatible with cotton, linen, polyester, and other apparel fabrics. Achieves high-speed printing (3158㎡/h) for large batches of basic fabric patterns, while also enabling high-definition output for intricate designs on premium garments.

2. Custom Home Textile Production

Covers bed linens, curtains, and other home textiles. Compatible with reactive/disperse inks, enabling complex pattern printing on silk, wool, and other materials. The 3400mm ultra-wide format supports continuous production of large-format home textiles, reducing splicing processes.

3. Textile Decorative Material Processing

Suitable for upholstery fabrics, carpets, and other decorative textiles. Supports diverse fabric-ink combinations. High-definition mode delivers highly accurate texture reproduction, meeting visual demands for mid-to-high-end decorative materials.

Precautions for Machine Use：

H3-PLUS Operation Procedure (Simplified Version)

1. Secure fabric roll (compatible with 3400mm width), select corresponding ink.

2. Select “High Definition / High Speed Mode” on interface, import pattern and perform pre-printing.

3. Confirm parameters then initiate continuous printing, monitor ink/printhead status during process.

4. Collect material after printing, execute automatic printhead cleaning, complete daily maintenance.

5. Streamlined operation for easy mastery, balancing efficiency and user-friendliness.

Certificate of Qualification：

Product Customization Service Process：

Packaging & Transportation：

Why Choose US:

Hopetech pays attention to quality as well as research and development. We have a history of more than 15 years in digital printing. Our equipments can be found in different industries around the world.

1.The factory covers an area of more than 20,000 square meters

2.The total annual R&D investment more than 1 million US dollars

3.High-quality agents around the world

4.More than 300 employees

Customer Evaluation:

Contact Information:

Company Profile:

HOPETECH DIGITAL CO.,LTD (HOPETECH for short) is a high-tech company which integrates development, manufacture,sales and service. Since the company was founded, HOPE people have established a long-term developing strategy of building up a world top brand in the industry. From the principle design of equipment, to the selection of spare parts, and to the execution of process and technical solutions,the company has always been adhering to "Hope relies on quality, innovation founds the future"business philosophy.

As a pioneer in large-scale industrial digital printer application, HOPE started business from the research & development of electronics hardware and software. After more than 20 years of unremitting efforts and development, we have provided thousands of high-speed industrial digital printers to the market. Besides China,our customers cover many countries and regions such as India, Malaysia, Indonesia, Vietnam, Pakistan, Egypt, Iran, Turkey, etc. We have accumulated rich experience in digital printing application.

We dedicate to apply new industrial digital printing technology into textile industry, and have promoted a variety of specifications of multi-pass & single-pass textile printers, which can meet the needs of different production process and productivity.To-day, the HOPE people, who take quality, service, and innovation as principles of development, will spare no efforts to meet new challenges, create a brighter future of HOPE, provide fresh new digital printing experience to the customers and accelerate the digitalization of textile industry.

Customer FAQ:

Q1: What is the Minimum Order Quantity (MOQ)?

A: The minimum order quantity is 1 set.

Q2: What is the lead time for production and delivery?

A: Lead time depends on the specific model. We normally keep stock available for quick delivery.

Q3: How will you deliver the equipment?

A: For large machinery, we primarily arrange delivery by sea freight.

Q4: What payment methods do you accept?

A: We accept payment via T/T and L/C. A proforma invoice including all costs will be provided for order confirmation. Please note that import tariffs and customs clearance fees are the responsibility of the buyer.

Q5: Can you print our brand logo on the equipment (OEM)?

A: Yes, OEM and custom branding options are available for certain order quantities.

Q6: Can I request printing samples before ordering?

A: Yes, fabric printing samples are available. Please contact our sales team for details.

Q7: How do I know if this machine is suitable for my production requirements?

A: You can share your fabric, ink, and daily output requirements with our sales specialists to receive professional recommendations and technical solutions.

Q8: What is the warranty period for this machine?

A: We provide a standard 1-year warranty along with continuous online technical support.

Q9: How do we install and operate the equipment after delivery?

A: We offer free operational training and lifetime online technical guidance to help you set up and run the machine smoothly.
