Product Features and Advantages

H1-PRO Series Product Advantages and Features

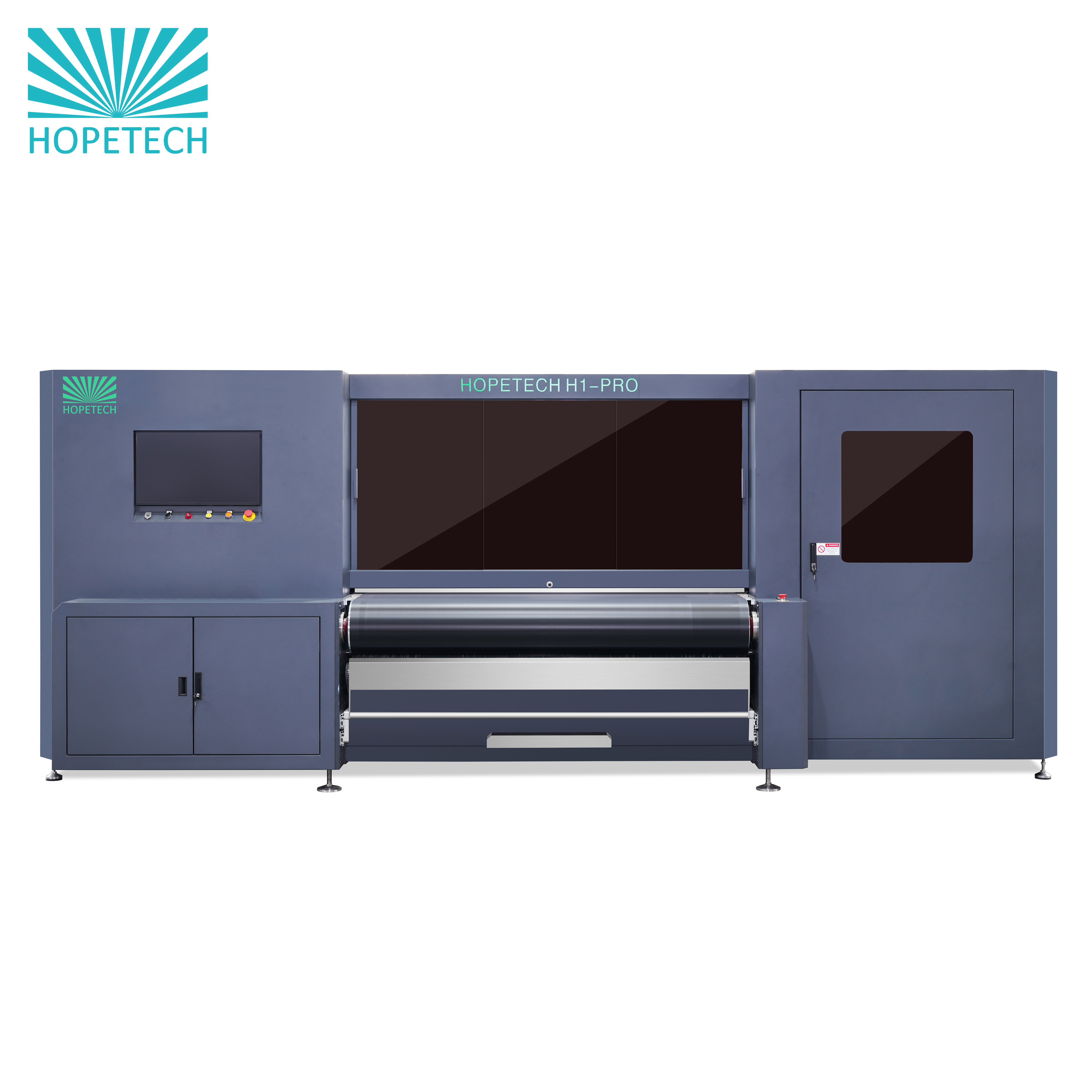

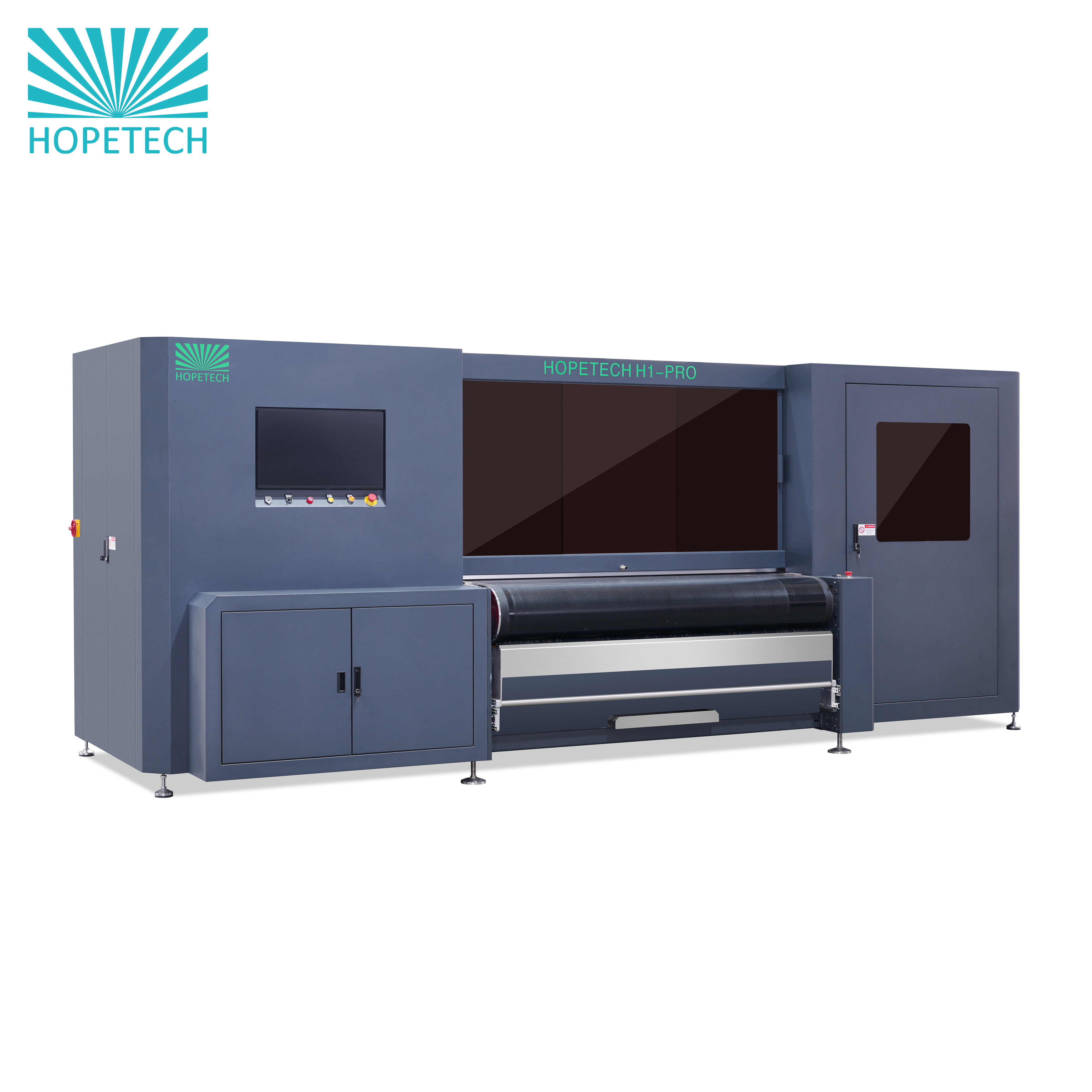

H1-PRO Positioning Textile Digital Printer is a high-speed digital textile printing solution designed for the textile industry. Its core strengths lie in "precise pattern positioning, multi-fabric compatibility, and high-efficiency stability." Key technical features and supporting data are as follows:

1. 「High Productivity + Precision Positioning」

Boasting a maximum print width of 1800mm, H1-PRO delivers exceptional speed and high-precision pattern registration. A single machine can support high-volume daily production, significantly boosting order fulfillment efficiency for textile manufacturers.

2.「Multi-Ink + Full Fabric Coverage」 for All Textile Applications

Compatible with reactive, disperse, acid, and pigment inks, it supports printing on all mainstream fabrics, including cotton, linen, silk, wool, polyester, nylon, and blended materials. This versatility covers over 80% of common textile applications, from apparel to home goods, allowing a single machine to handle diverse production needs.

3. 「Unified High-Spec Hardware」 Ensures Stable Industrial-Grade Operation

The system is built with high-performance printheads and runs on a robust industrial power supply. Its heavy-duty, standardized hardware delivers 30% higher continuous-operation stability than lighter alternatives, minimizing downtime risks on the production line.

4. 「Dual-Mode Printing」 Balances Quality and Efficiency

Offers both high-definition and high-speed printing modes:

·High-definition mode (4 Pass): Delivers precise output for high-precision patterns and detailed positioning designs.

·High-speed mode: Provides ultra-fast throughput ideal for high-volume basic fabric production.

Product Specifications

H1-PRO
Machine Model		H1-PRO-K16		H1-PRO-K32
Max Printing Width		1800mm
Printhead Brand/Type		Kyocera EX600RC
Printhead QTY/ Color		16 Heads / 8 Colors (4*4)		32 Heads / 8 Colors (4*8)
Printing Mode		High Definition Mode	High Speed Mode	High Definition Mode	High Speed Mode
Production (m2/h)	1 Pass	/	/	1188	1287
	2 Pass	660	700	594	644
	4 Pass	330	350	297	322
Ink Type		Reactive/Disperse/Acid/Pigment
Applicable Medium		Cotton, Linen, Silk, Wool, Polyester, Nylon, Blended Materials
Power Supply		3 Phase 380VAC, 20kW
Printer Dimension(LxWxH)		3100×5100×2120mm
Printer Weight		6000kg

Application Scenarios

H1-PRO Positioning Series Application Scenarios

• Bulk Printing of Apparel Fabrics

  Compatible with cotton, linen, polyester, and a wide range of other apparel fabrics. It delivers high-speed printing at up to 1287 m²/h for large-batch production of basic fabric patterns, while also supporting high-definition output for intricate positioning designs on premium garments.

• Custom Home Textile Production

  Ideal for bed linens, curtains, and other home textile applications. Compatible with both reactive and disperse inks, it enables complex pattern positioning on materials like silk and wool. The 1800mm format supports continuous production of home textiles, eliminating the need for additional splicing processes.

• Textile Decorative Material Processing

  Well-suited for upholstery fabrics, carpets, and other decorative textiles. It supports diverse fabric-ink combinations, and its high-definition mode ensures highly accurate texture reproduction, meeting the visual quality requirements of mid-to-high-end decorative materials.

Precautions for Machine Use

H1-PRO Operation Procedure (Simplified Version)

1. Secure the fabric roll (compatible with 1800mm width) and select the corresponding ink type.

2. Choose between “High Definition” or “High Speed Mode” on the control interface, import the design pattern, and perform a pre-print test.

3. Confirm all parameters, then start continuous printing. Monitor ink levels and printhead status throughout the process.

4. Collect the printed material after completion, run automatic printhead cleaning, and perform daily maintenance tasks.

5. The streamlined workflow ensures easy operation, balancing high efficiency with user-friendliness.

Certificate of Qualification：

Product Customization Service Process：

Packaging & Transportation：

Why Choose US:

Hopetech pays attention to quality as well as reseach and development. We have a history of more than 15 years in digital printing. Our equipments can be found in different industries around the world.

1.The factory covers an area of more than 20,000 square meters

2.The total annual R&D investment more than 1 million US dollars

3.High-quality agents around the world

4.More than 300 employees

Customer Evaluation:

Contact Information:

Company Profile:

HOPETECH DIGITAL CO.,LTD (HOPETECH for short) is a high-tech company which integrates development, manufacture, sales and service. Since the company was founded, HOPE people have established a long-term developing strategy of building up a world top brand in the industry. From the principle design of equipment, to the selection of spare parts, and to the execution of process and technical solutions,the company has always been adhering to "Hope relies on quality, innovation founds the future"business philosophy.

As a pioneer in large-scale industrial digital printer application, HOPE started business from the research & development of electronics hardware and software. After more than 20 years of unremitting efforts and development, we have provided thousands of high-speed industrial digital printers to the market. Besides China,our customers cover many countries and regions such as India, Malaysia, Indonesia, Vietnam, Pakistan, Egypt, Iran, Turkey, etc. We have accumulated rich experience in digital printing application.

We dedicate to apply new industrial digital printing technology into textile industry, and have promoted a variety of specifications of multi-pass & single-pass textile printers, which can meet the needs of different production process and productivity.To-day, the HOPE people, who take quality, service, and innovation as principles of development, will spare no efforts to meet new challenges, create a brighter future of HOPE, provide fresh new digital printing experience to the customers and accelerate the digitalization of textile industry.

Customer FAQ:

Q1: What is the Minimum Order Quantity (MOQ)?

A: The minimum order quantity is 1 set.

Q2: What is the lead time for production and delivery?

A: Lead time depends on the specific model. We normally keep stock available for quick delivery.

Q3: How will you deliver the equipment?

A: For large machinery, we primarily arrange delivery by sea freight.

Q4: What payment methods do you accept?

A: We accept payment via T/T and L/C. A proforma invoice including all costs will be provided for order confirmation. Please note that import tariffs and customs clearance fees are the responsibility of the buyer.

Q5: Can you print our brand logo on the equipment (OEM)?

A: Yes, OEM and custom branding options are available for certain order quantities.

Q6: Can I request printing samples before ordering?

A: Yes, fabric printing samples are available. Please contact our sales team for details.

Q7: How do I know if this machine is suitable for my production requirements?

A: You can share your fabric, ink, and daily output requirements with our sales specialists to receive professional recommendations and technical solutions.

Q8: What is the warranty period for this machine?

A: We provide a standard 1-year warranty along with continuous online technical support.

Q9: How do we install and operate the equipment after delivery?

A: We offer free operational training and lifetime online technical guidance to help you set up and run the machine smoothly.
