TQ
HOPETECH

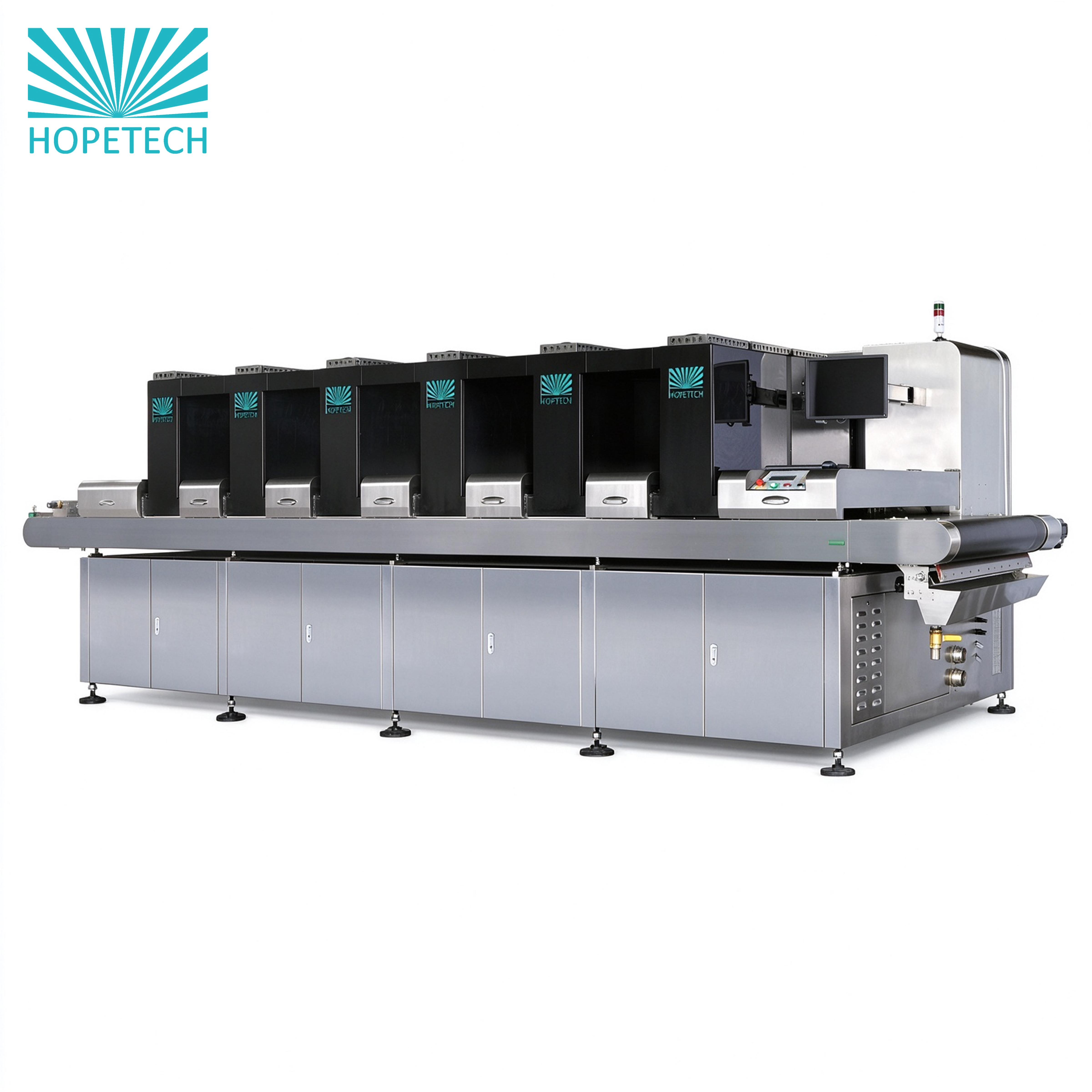

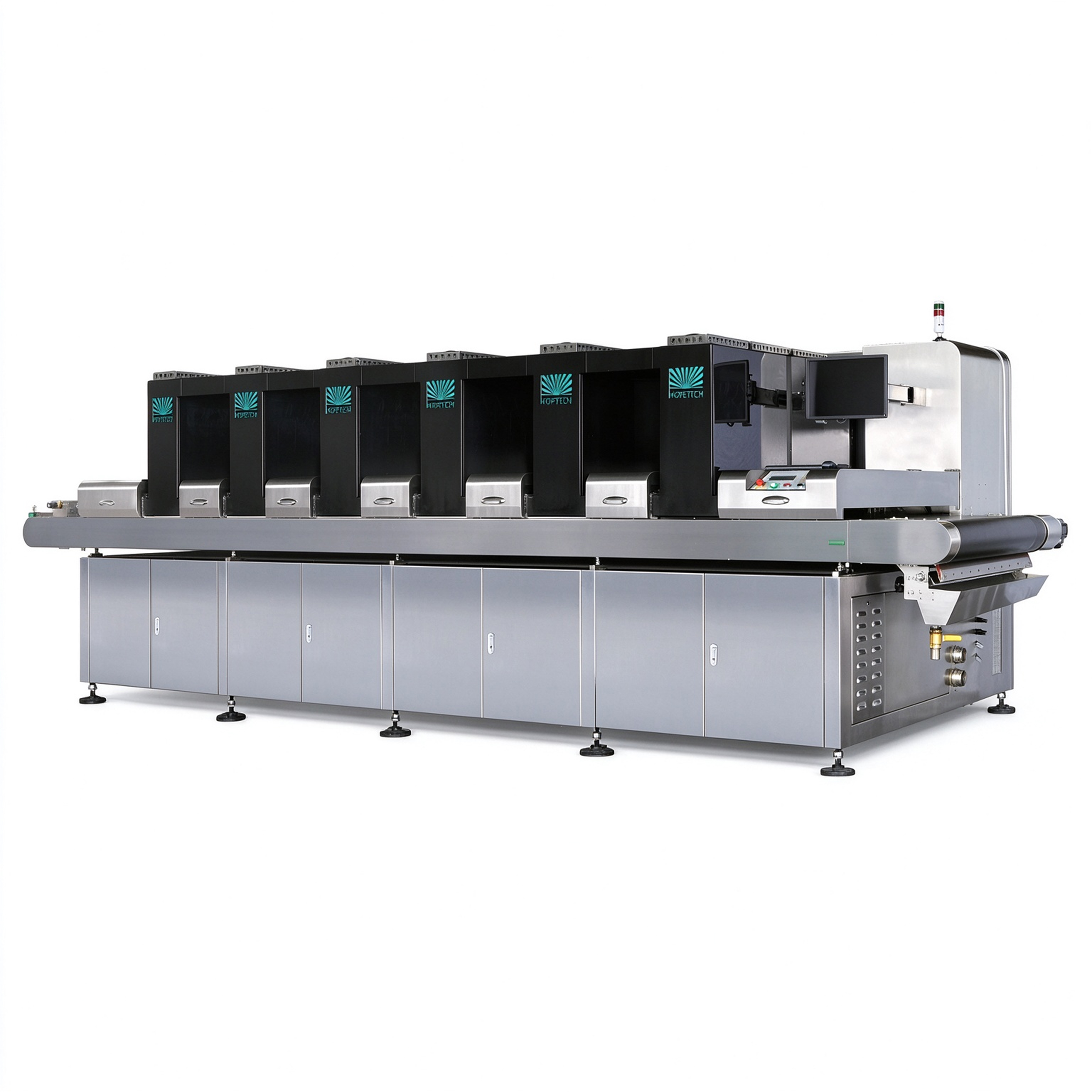

With 28 years of experience in industrial digital printing, HOPETECH has designed the TQ series ceramic inkjet printers to meet diversified production demands for modern ceramic tile manufacturers. This compact printer series adopts Dimatix SG1024 and SG600MC2C printheads, supporting up to 8 or 12 color channels. It features whole lifting printhead plate structure to guarantee stable printing precision, equipped with integrated automatic cleaning, printhead sealing protection and waste ink disposal functions. The Dimatix SG1024 printheads are fitted with circulation liquid cooling system for long-hour stable online operation, together with automatic ink recycling system for economical and eco-friendly tile production.
The TQ series supports color channels ranging from 2 colors up to 12 colors with a compact and smart mechanical structure. Multiple models are available to match different production scales, suitable for simple single-tone printing as well as rich multi-gradient pattern printing. It helps factories flexibly respond to small-batch orders and mass tile production.
The printhead plate adopts integral lifting and descending design. It keeps consistent printing distance between printheads and tile surface during production, effectively avoiding deviation and guaranteeing stable, uniform printing accuracy for all batches of ceramic tiles.
This machine integrates automatic printhead cleaning, air suction trough cleaning, printhead sealing protection and waste ink disposal in one module. It can automatically complete nozzle maintenance without frequent manual intervention, reduce nozzle clogging risk and extend printhead service life.
Dimatix SG1024 printheads are equipped with re-circulation water cooling system, which controls printhead temperature steadily to support non-stop long-running production. Meanwhile, the automatic ink recycling system collects waste ink for reuse, cutting ink consumption and lowering production cost while realizing environmental-friendly manufacturing.
The TQ series includes multiple models: TQZ, TQZ+, TQZ-PLUS, TQX, TQD, TQD-PLUS, TQZ-MAX, TQD-MAX. Its color printing system covers 2–12 colors, with max printing working width from 580mm to 1230mm. Installed power options are 13kW,18kW and 23kW. Overall length ranges from 4375mm to 6700mm, width 1665~2355mm, fixed height 2125mm. The printing platform height is adjustable between 1000mm and 1070mm, machine weight from 3.2 tons to 7.9 tons. Download our full specification sheet for detailed model comparisons.
Model | Color Printing System | Max Printing Width(mm) | Installed Power (kw) | Length (mm) | Width (mm) | Height (mm) | Height of Printing Platform (mm) | Weight (t) | |
Dimatix SG1024 | Dimatix SG600MC2C | ||||||||
TQZ+ | 2-6 | 1030-3 | 1035-2 | 13 | 4375 | 2027 | 2125 | 1000-1070 | 3.5 |
TQZ&TQZ+ | 8-14 | 1030-3 | 1035-2 | 23 | 8540 | 2027 | 2125 | 1000-1070 | 7.0 |
TQZ-PLUS&TQZ+ | 10-16 | 1030-3 | 1035-2 | 23 | 9320 | 2027 | 2125 | 1000-1070 | 7.9 |
TQX | 4-8 | 580-3 | 585-4 | 13 | 4785 | 1665 | 2125 | 1000-1070 | 3.2 |
TQZ | 4-8 | 1030-3 | 1035-2 | 13 | 5160 | 2027 | 2125 | 1000-1070 | 3.7 |
TQD | 4-8 | 1220-1 | 1230-3 | 13 | 5160 | 2227 | 2125 | 1000-1070 | 4.1 |
TQZ-PLUS | 6-10 | 1030-3 | 1035-2 | 18 | 5930 | 2027 | 2125 | 1000-1070 | 4.6 |
TQD-PLUS | 6-10 | 1220-1 | 1230-3 | 18 | 5930 | 2227 | 2125 | 1000-1070 | 5.0 |
TQZ-MAX | 6-12 | 1030-3 | 1035-2 | 18 | 6700 | 2120 | 2125 | 1000-1070 | 5.8 |
TQD-MAX | 6-12 | 1220-1 | 1230-3 | 18 | 6700 | 2355 | 2125 | 1000-1070 | 6.5 |
Suitable for digital inkjet pattern printing on conventional ceramic wall and floor tiles, to realize diversified surface decoration for home renovation and commercial tile products.
Supports up to 16-color printing, capable of reproducing complex gradient textures, natural stone and wood grain patterns, to satisfy high-demand decorative tile orders with abundant color layers.
With integral lifting printhead plate design, it maintains stable printing gap, delivering sharp and delicate patterns, ideal for high-end artistic tiles and boutique decorative tiles requiring consistent fine texture.
Built with an all-in-one automatic cleaning, printhead sealing protection and waste ink disposal system, paired with printhead circulation cooling and ink recycling functions. It enables stable, non-stop long-cycle tile production, reduces frequent manual cleaning work and cuts downtime for mass-production ceramic plants.
HOPETECH operates a 20,000+ square meter production facility with over 300 employees dedicated to digital printing technology. Our annual R&D investment exceeds 1 million US dollars, driving continuous innovation in printing solutions. With a presence in over 50 countries and regions worldwide, we maintain a network of high-quality agents to provide local support. Our 28-year industry history and ISO quality certifications ensure that every solution meets international standards.
 |  |
"I personally like Hopetech machines, so I want Hopetech to go ahead in all our projects. The technical support has been exceptional, and the equipment performs consistently in our production environment."
——Mattia, Printing Factory Owner, Bangladesh
"Thank you for always taking us forward with technical support. Whenever you come to Bangladesh, you are invited to visit our factory."
——Bangladesh-based Manufacturing Client
We offer comprehensive customization options to meet specific production requirements. Our engineering team can tailor print widths, color systems, and printhead configurations to match your unique needs. The customization process includes detailed requirement analysis, custom solution design, manufacturing, installation, and ongoing technical support.
All equipment undergoes rigorous final inspection before packaging. We use wooden case packaging to ensure safe transportation, followed by container loading and delivery to your specified location. Our logistics team coordinates every step of the process to ensure timely and secure delivery.
TQ series supports Dimatix SG1024 and Dimatix SG600MC2C printheads for selection.
The integral lifting design keeps stable printing gap, ensuring consistent printing precision during long-term production.
The circulation liquid cooling system stabilizes printhead temperature for continuous running; automatic waste ink recycling saves ink cost and supports green production.
