TB
HOPETECH

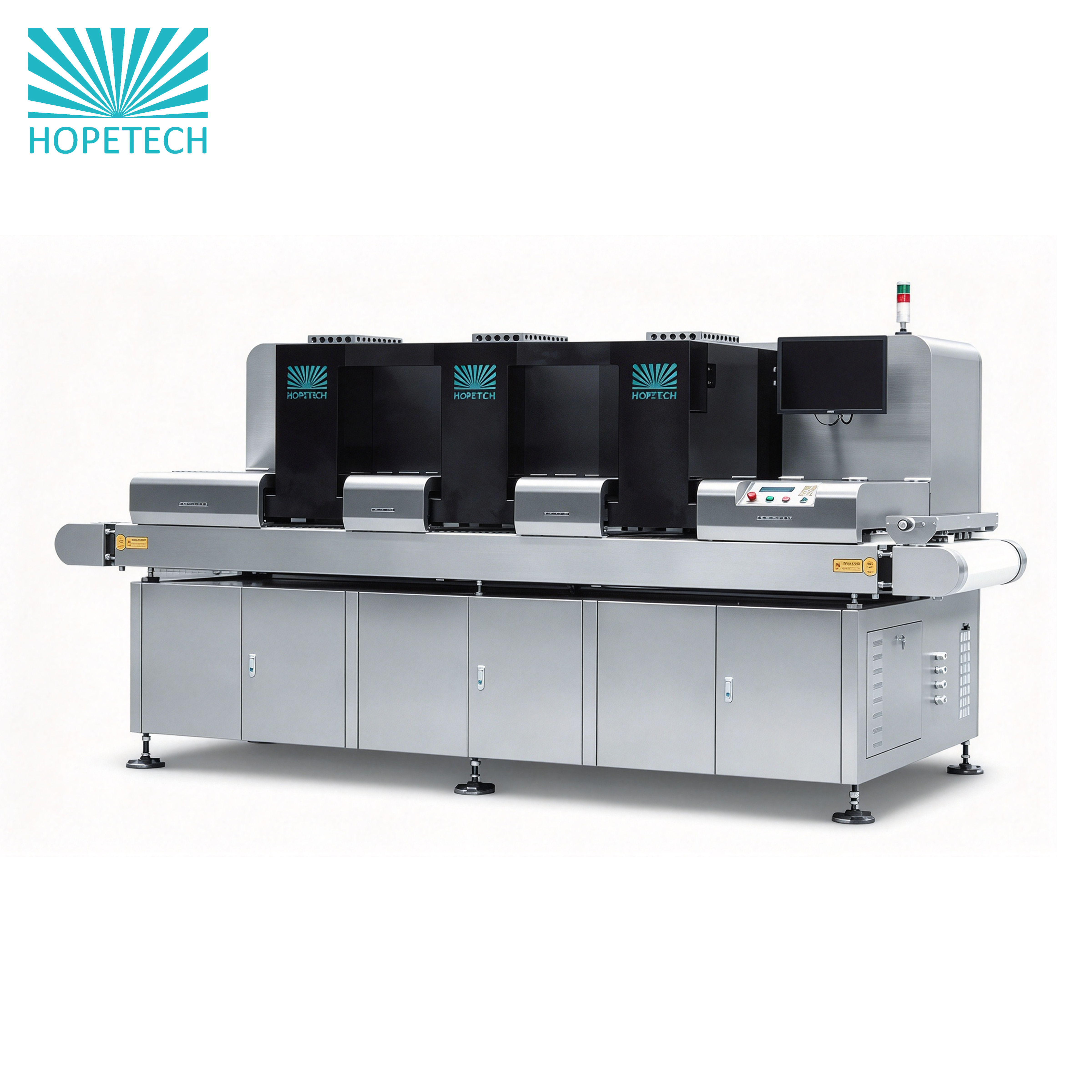

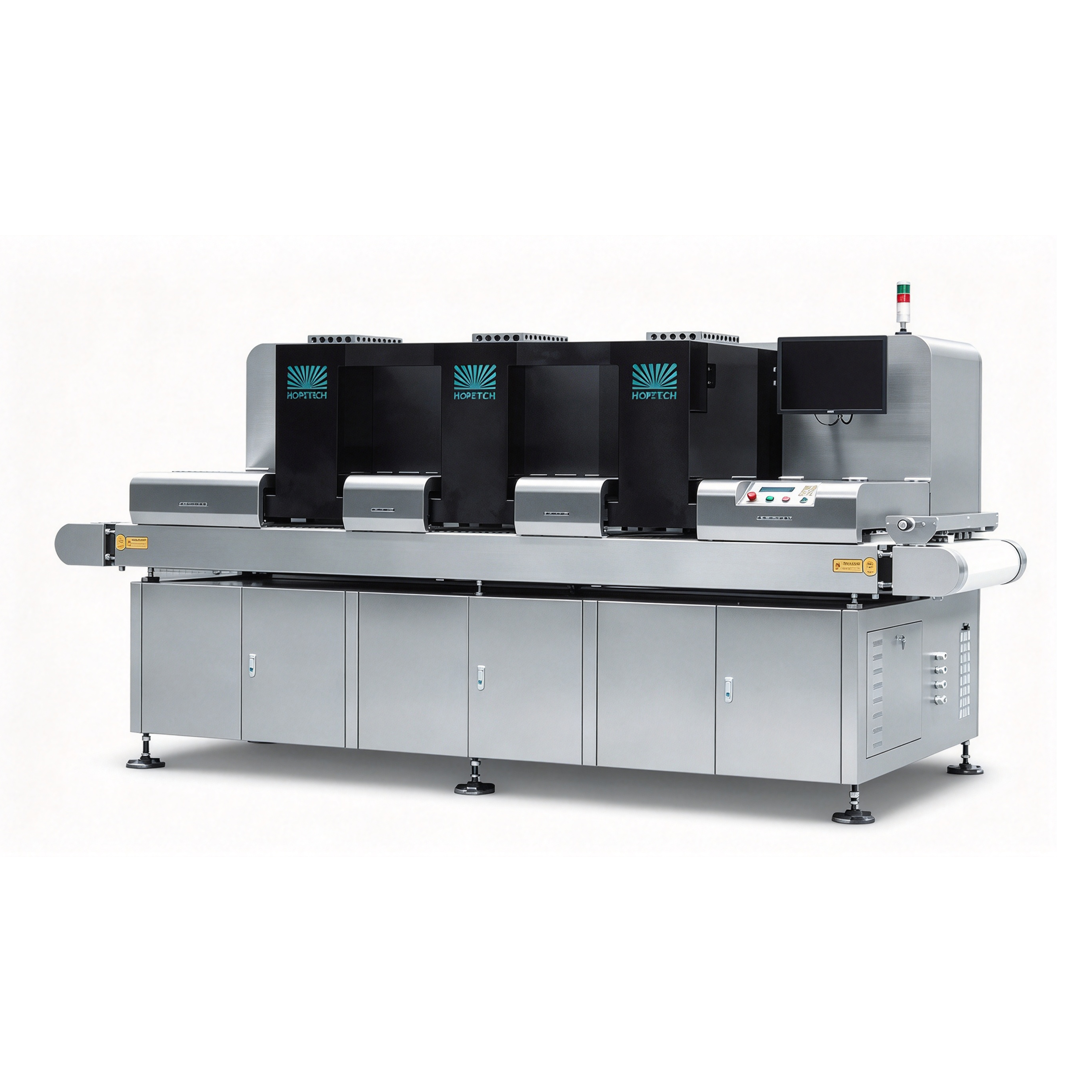

With 28 years of experience in industrial digital printing, HOPETECH has designed the TB series ceramic inkjet printers to fit small-to-medium ceramic manufacturers and flexible production lines. This lightweight, compact machine adopts Dimatix SG1024 printheads, supporting 4–12 color channels. Built with a solid one-piece integrated structure, it delivers stable printing precision while reserving generous space for routine maintenance. It comes with a well-engineered all-in-one cleaning unit for printheads and suction troughs, printhead sealing protection and waste ink disposal. Fast cleaning cycles extend printhead service life, paired with automatic waste ink recycling for cost-effective and eco-friendly tile decoration.
The TB series features a smart, lightweight mechanical structure with up to 6-color bars for the single TBX unit. Its small footprint makes it easy to install on compact production workshops, ideal for factories with limited floor space. Users can select standalone TBX or twin TBX+TBX configuration to scale color channels from 4–6 up to 6–12 colors.
Adopting integrated monolithic construction, the machine chassis maintains high rigidity and stability to guarantee consistent printing accuracy. Ample internal space is reserved for operators to access printheads and core parts, simplifying inspection, replacement and regular maintenance work.
It integrates automatic cleaning for printheads and suction troughs, printhead sealing protection and waste ink disposal into one functional module. With fast cleaning speed, it effectively prevents nozzle clogging and ink dry-up, greatly extending the service life of Dimatix SG1024 printheads and cutting consumable expenses.
Equipped with an automatic ink recycling system, waste ink is collected and reused properly. This design reduces ink consumption, lowers material cost, and minimizes ink waste to achieve sustainable, environmentally responsible ceramic production.
The TB series includes two models: TBX and TBX+TBX. TBX supports 4–6 color channels with 13kW installed power, dimension 3990×1664×2092mm and weight of 2.3 tons. TBX+TBX supports 6–12 color channels with 23kW installed power, dimension 7470×1664×2092mm and weight of 4.6 tons. Both models share the same max printing width of 580-3mm and adjustable printing platform height of 1000–1070mm. Download our full specification sheet for detailed model comparisons.
Model | Color Printing System | Max Printing Width(mm) | Installed Power (kw) | Length (mm) | Width (mm) | Height (mm) | Height of Printing Platform (mm) | Weight (t) |
Dimatix SG1024 | ||||||||
TB | 4-6 | 580-3 | 13 | 3990 | 1664 | 2092 | 1000-1070 | 2.3 |
TBX+TBX | 6-12 | 580-3 | 23 | 7470 | 1664 | 2092 | 1000-1070 | 4.6 |
Suitable for digital inkjet pattern printing on conventional ceramic wall and floor tiles, to realize diversified surface decoration for home renovation and commercial tile products.
The TBX+TBX twin configuration supports up to 12-color printing, capable of reproducing complex gradient textures, natural stone and wood grain patterns, to satisfy high-demand decorative tile orders with abundant color layers.
The compact lightweight TB unit is perfectly suited for boutique decorative tile production. With stable integrated structure and reliable cleaning system, it ensures fine, consistent patterns for stone-look and wood-look tiles.
Built with an all-in-one automatic cleaning, printhead sealing protection and waste ink disposal system, paired with automatic waste ink recycling. It enables stable, non-stop long-cycle tile production, reduces frequent manual cleaning work and cuts downtime for ceramic plants with moderate output.
HOPETECH operates a 20,000+ square meter production facility with over 300 employees dedicated to digital printing technology. Our annual R&D investment exceeds 1 million US dollars, driving continuous innovation in printing solutions. With a presence in over 50 countries and regions worldwide, we maintain a network of high-quality agents to provide local support. Our 28-year industry history and ISO quality certifications ensure that every solution meets international standards.
 |  |
"I personally like Hopetech machines, so I want Hopetech to go ahead in all our projects. The technical support has been exceptional, and the equipment performs consistently in our production environment."
——Mattia, Printing Factory Owner, Bangladesh
"Thank you for always taking us forward with technical support. Whenever you come to Bangladesh, you are invited to visit our factory."
——Bangladesh-based Manufacturing Client
We offer comprehensive customization options to meet specific production requirements. Our engineering team can tailor print widths, color systems, and printhead configurations to match your unique needs. The customization process includes detailed requirement analysis, custom solution design, manufacturing, installation, and ongoing technical support.
All equipment undergoes rigorous final inspection before packaging. We use wooden case packaging to ensure safe transportation, followed by container loading and delivery to your specified location. Our logistics team coordinates every step of the process to ensure timely and secure delivery.
TB series adopts Dimatix SG1024 printheads.
TBX is the single unit for 4–6 colors; TBX+TBX is twin combined unit supporting 6–12 colors with higher power and longer body.
It recycles waste ink to cut ink cost and support eco-friendly ceramic tile production.
