Product Features and Advantages：

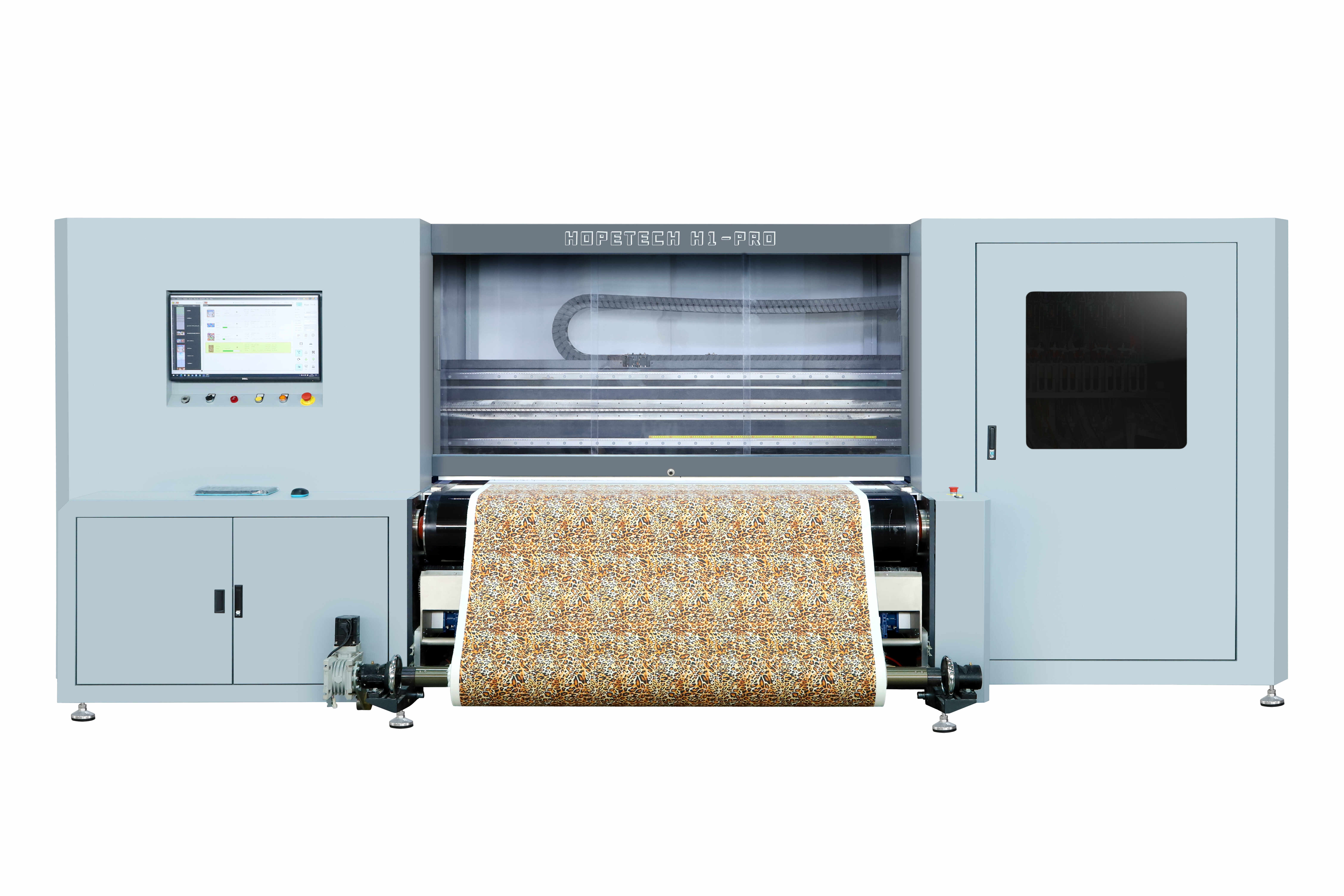

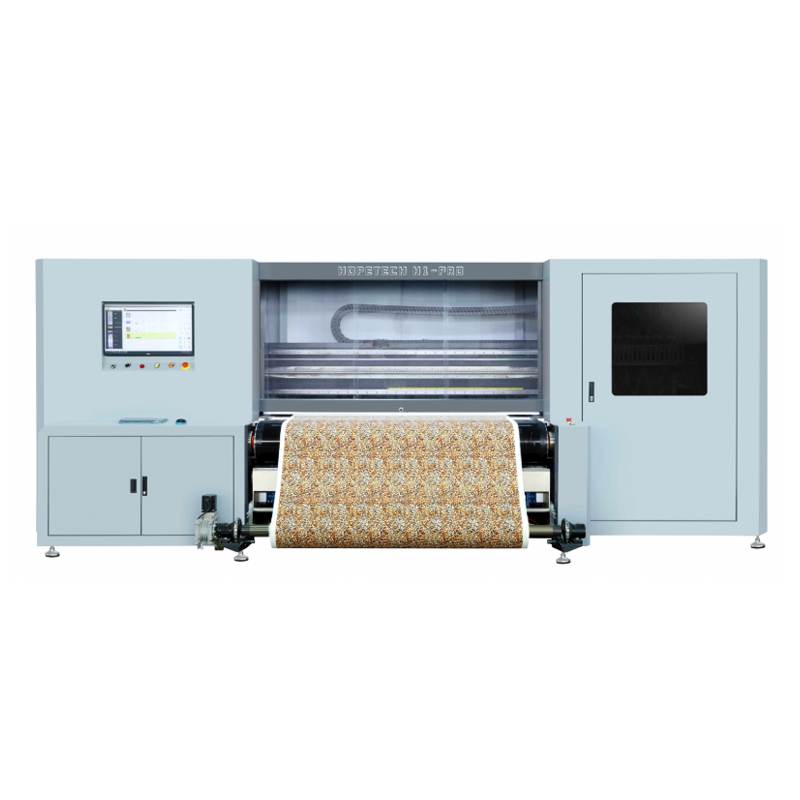

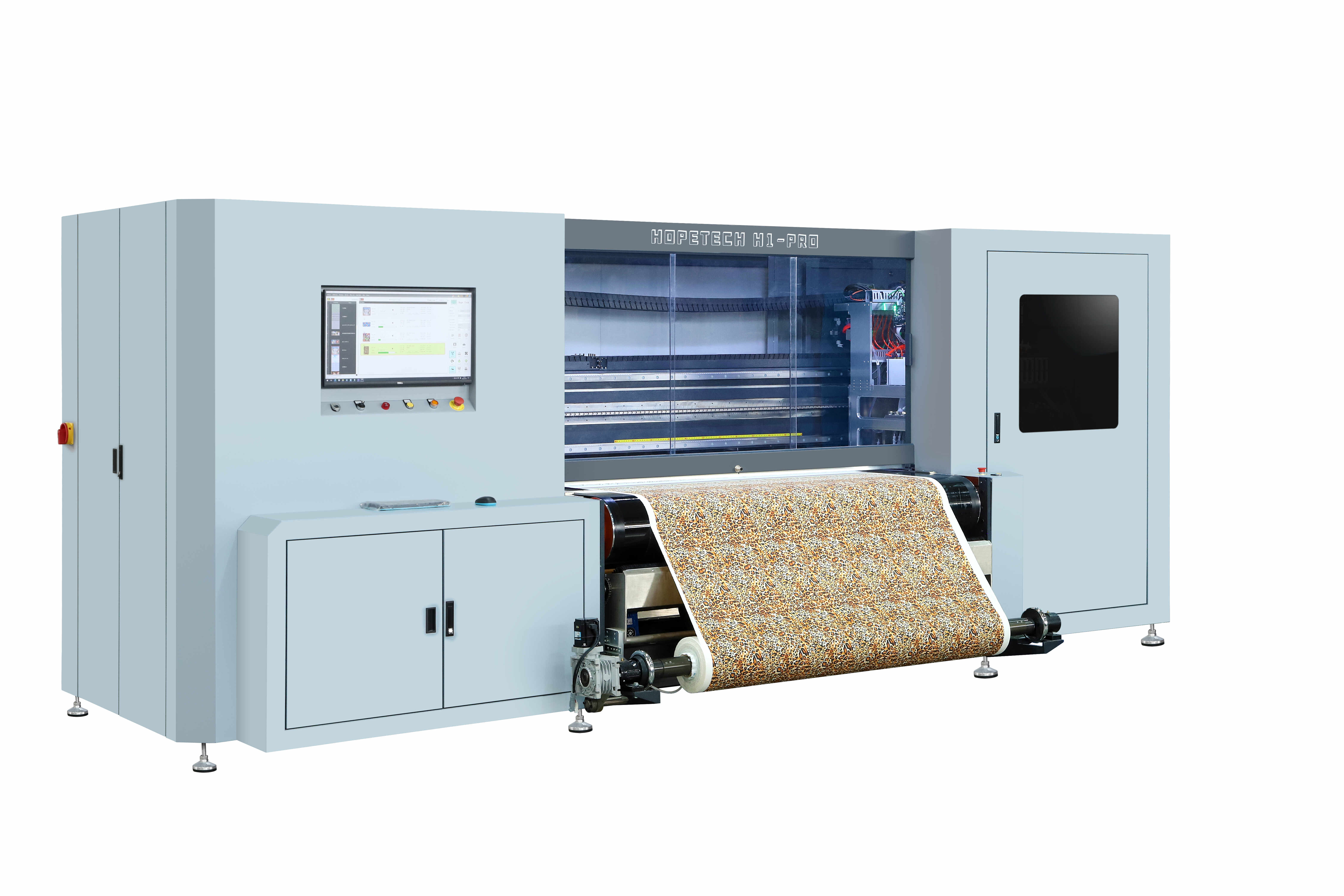

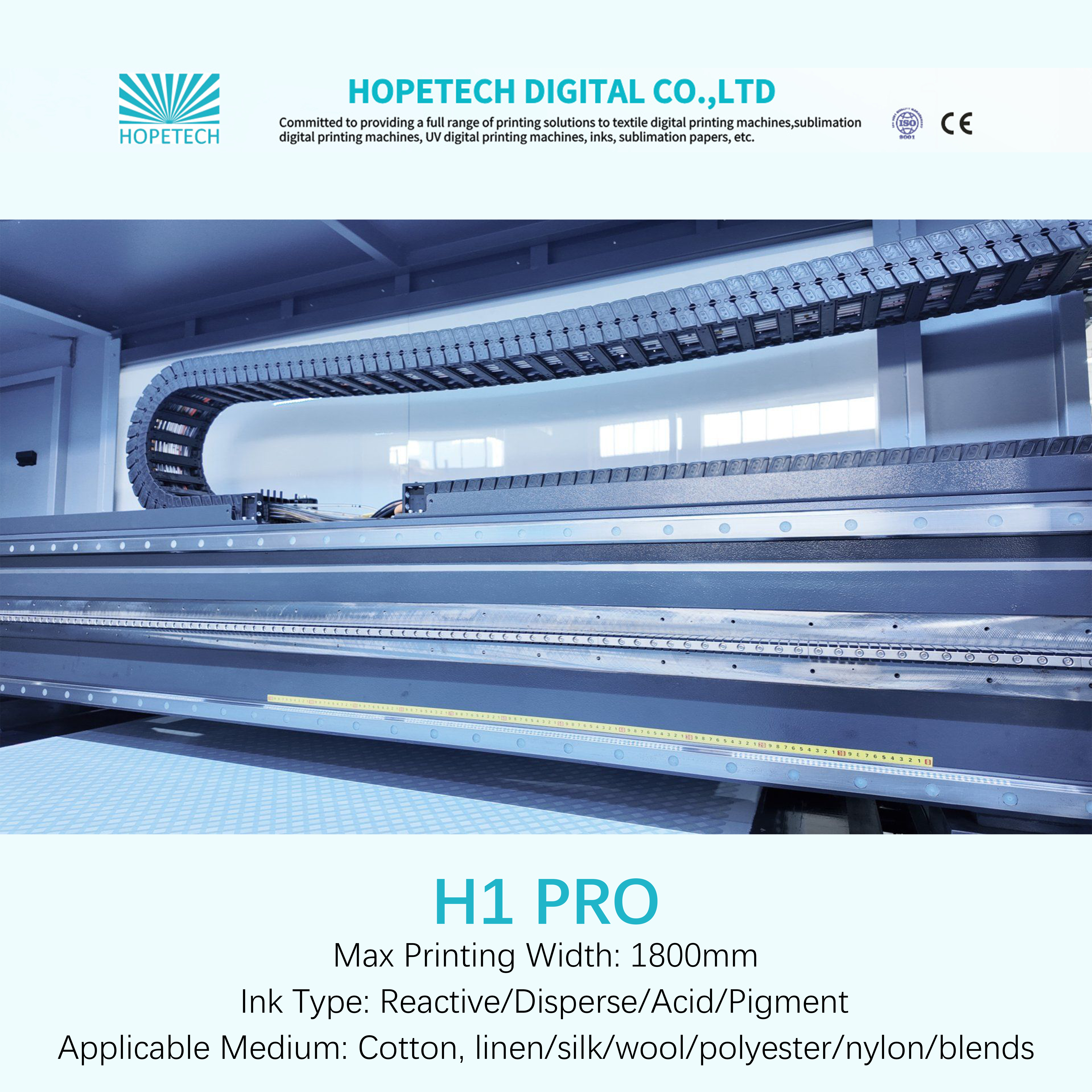

HI-PRO Digital Printing Machine Detailed Product Introduction

Ultra-wide dual-head configuration with industry-leading productivity

Supports 1800mm ultra-wide single-pass printing, eliminating fabric splicing waste

Equipped with 16/32-head industrial-grade printheads in dual models:

- 16-head model achieves 558㎡/hour in high-speed mode, ideal for small-to-medium batch production The 32-head model surges to 1287㎡/hour—approximately 30% higher than comparable industry models (e.g., Hanin DA188S at 900㎡/hour)—handling large-scale orders exceeding 100,000 meters with “fabric received today, shipped tomorrow” efficiency.

Full Ink Compatibility + Fabric Precision Matching for Diverse Applications Supports all ink categories including mild solvent, acid, reactive, and disperse inks. Customized solutions for different fabrics: Acid ink suits wool/silk, delivering high colorfastness (Grade 4+) and soft skin feel; Reactive ink matches cotton/linen, offering vibrant colors that resist fading after washing; Disperse inks excel on polyester with strong adhesion. Stable printing across cotton, linen, silk, wool, and more—switch business scenarios without changing equipment.

High-efficiency, low-waste design delivers dual benefits of cost reduction and productivity enhancement. High output with low energy consumption: Main unit weighs only 800kg, 20% lighter than comparable wide-format models, saving workshop space and facilitating relocation. Equipped with 380V/220kW power supply, achieving approximately 15% lower energy consumption per unit printed area than industry averages, reducing long-term electricity costs by over 12%. Compact structure with universal maintenance parts reduces operational costs by 20% compared to traditional models.

High-Precision Stability System Ensures Consistent Batch Quality Equipped with a closed-loop precision color registration system, it employs dual photoelectric sensors + fuzzy PID algorithms for real-time correction, maintaining color registration accuracy within ±0.1mm to eliminate color position shifts in wide-format printing. Industrial printheads with independent heating modules enhance ink consistency by 20%. Supports 24/7 continuous production with a failure rate below 0.3%. Achieves over 99.5% color/pattern consistency in batch fabric printing, reducing rework rates to under 0.2%.

Product Specifications:

Application Scenarios:

HI-PRO Digital Printing Machine Specific Application Scenarios

Suitable for high-volume production scenarios in apparel, handling orders for seasonal fabrics from designer brands, sportswear, etc.:

16-head model: 558 sqm/hour

32-head model: 1287 sqm/hour High-capacity production capable of handling tens of thousands of meters of fabric printing. Compatible with cotton/linen/polyester fabrics + reactive/disperse inks, ensuring vibrant colors and wash fastness, enabling “same-day order, next-day delivery.”

Large-format home textiles for soft furnishings: For curtains, bedding, sofa covers, and other oversized home textiles, the 1800mm ultra-wide format enables seamless fabric printing. Multiple ink solutions adapt to different materials (e.g., disperse inks for polyester curtains), with precise color registration reproducing Nordic/vintage patterns to elevate the visual quality of home soft furnishings.

Outdoor Functional Products Suitable for advertising umbrellas, tents, sun-protective clothing, and other outdoor items: Dispersion inks adapt to polyester/nylon fabrics, delivering UV-resistant and waterproof prints. High productivity supports large-scale customization of branded advertising umbrellas while ensuring patterns remain fade-resistant and crack-free during prolonged outdoor use.

High-end silk and wool apparel applications: Ideal for silk scarves, wool qipaos, and other premium garments. Acid-based inks are compatible with protein-based fiber fabrics, preserving soft skin feel while achieving high colorfastness (Grade 4+). The precise color registration system reproduces intricate gradient patterns, meeting the artistic printing demands of high-end apparel.

Precautions for Machine Use：

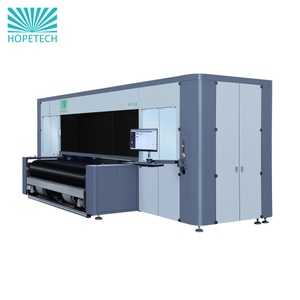

H2-PLUS Operation Procedure (Simplified Version)

1. Secure fabric roll (compatible with 2600mm width), select corresponding ink;

2. Select “High Definition / High Speed Mode” on interface, import pattern and perform pre-printing;

3. Confirm parameters then initiate continuous printing, monitor ink/printhead status during process;

4. Collect material after printing, execute automatic printhead cleaning, complete daily maintenance.

5. Streamlined operation for easy mastery, balancing efficiency and user-friendliness.

HI-PRO Digital Printing Machine Operation Manual

Pre-startup Preparation

Check 380V/220kW power connection; ensure 16/32-head printheads are clean and unclogged. Load corresponding ink (mild solvent/acidic/reactive, etc.) based on fabric type (cotton/linen/polyester, etc.). Secure fabric flat on the platform with a maximum width of 1800mm.

Parameter Settings

Select machine model (K16/K32), match print mode (high-speed/high-precision), and enable precise color registration function; Configure production parameters (e.g., K32 High Speed: 1287㎡/h) and load color curves.

Test print calibration samples to verify registration accuracy (±0.1mm) and color consistency. Adjust printhead parameters until specifications are met, then confirm production job.

Batch Operation and Completion

Initiate production while monitoring equipment status in real-time. Upon completion, clean printheads, disconnect power, and organize printed fabrics for post-processing.

Certificate of Qualification：

Product Customization Service Process：

Packaging & Transportation：

Why Choose US:

Hopetech pays attention to quality as well as reseach and development. We have a history of more than 15 years in digital printing. Our equipments can be found in different industries around the world.

1. The factory covers an area of more than 20,000 square meters

2. The total annual R&D investment more than 1 million US dollars

3. High-quality agents around the world

4. More than 300 employees

Customer Evaluation:

Contact Information:

Customer FAQ:

1. Q: Our factory handles mixed orders of varying batch sizes. Can the equipment's production capacity be flexibly adjusted? How do you ensure consistent print quality for large-volume orders?

A: The equipment features dual configurations: 16-head and 32-head models. The 16-head model (558㎡/hour) handles small-to-medium batch orders, while the 32-head model (1287㎡/hour) accommodates large-volume orders exceeding 100,000 square meters. capable of handling large orders exceeding 100,000 meters. Equipped with a closed-loop precision color registration system, color registration accuracy is controlled within ±0.1mm. Industrial printheads feature independent temperature control modules, achieving a fault downtime rate below 0.3% during 24-hour continuous production. This ensures batch order color and pattern consistency exceeding 99.5%.

2. Q: Can production commence quickly after equipment delivery? What on-site services does the manufacturer provide? Does subsequent operation and maintenance training cover all personnel?

A: For domestic deliveries, a professional engineer will arrive within 72 hours to complete assembly and commissioning, ensuring immediate compliance upon startup. Two basic operation training sessions will be provided for operators, along with one advanced maintenance training session for technical supervisors. Free online refresher training is also available to ensure the team can independently handle daily startup/shutdown, cleaning, and basic troubleshooting. For overseas installations, dedicated agents will provide on-site repair and commissioning within 12 hours to ensure startup and compliance.

3. Q: What is the warranty period for the equipment? Do core components have additional coverage? How quickly can emergency repairs be dispatched during the warranty period?

A: The entire unit comes with a 12-month warranty. During this period, we provide 24/7 technical support hotline. 80% of minor issues can be resolved remotely. If on-site service is required, engineers will arrive within 4 hours in urban areas, 24 hours within the province, and 72 hours outside the province, minimizing downtime.

4. Q: Are maintenance costs high after the warranty expires? Does the manufacturer offer maintenance discounts? Can spare parts supply keep pace with production demands?

A: Post-warranty annual maintenance agreements are available, offering discounted parts and service benefits. The manufacturer maintains regional parts warehouses, ensuring common parts ship within 24 hours and specialized parts arrive within 48 hours. This guarantees uninterrupted production while reducing long-term consumable replacement costs.
